Patented
RAM® Drop-N-Lock Scanner Gun Holder
Part#: RAP-317U
UPC: 793442003172
$29.49

Overview

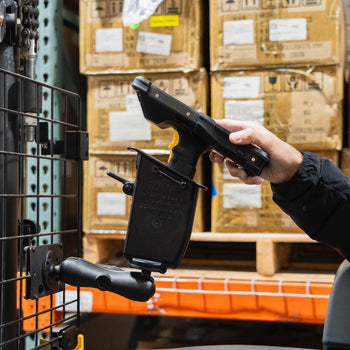

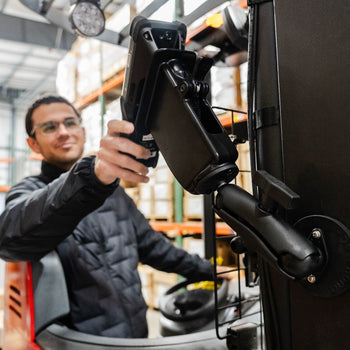

The RAM Drop-N-Lock Scanner Gun Holder is a specially designed cradle that will hold most types of Gun Scanner handles. On the side of the cradle is a spring loaded lever that will securely hold the Gun Scanner in the cradle. Simply drop the scanner handle into the holder and it will lock in place immediately. To remove simply lift the tab behind the holder and your scanner gun will lift right out with ease.

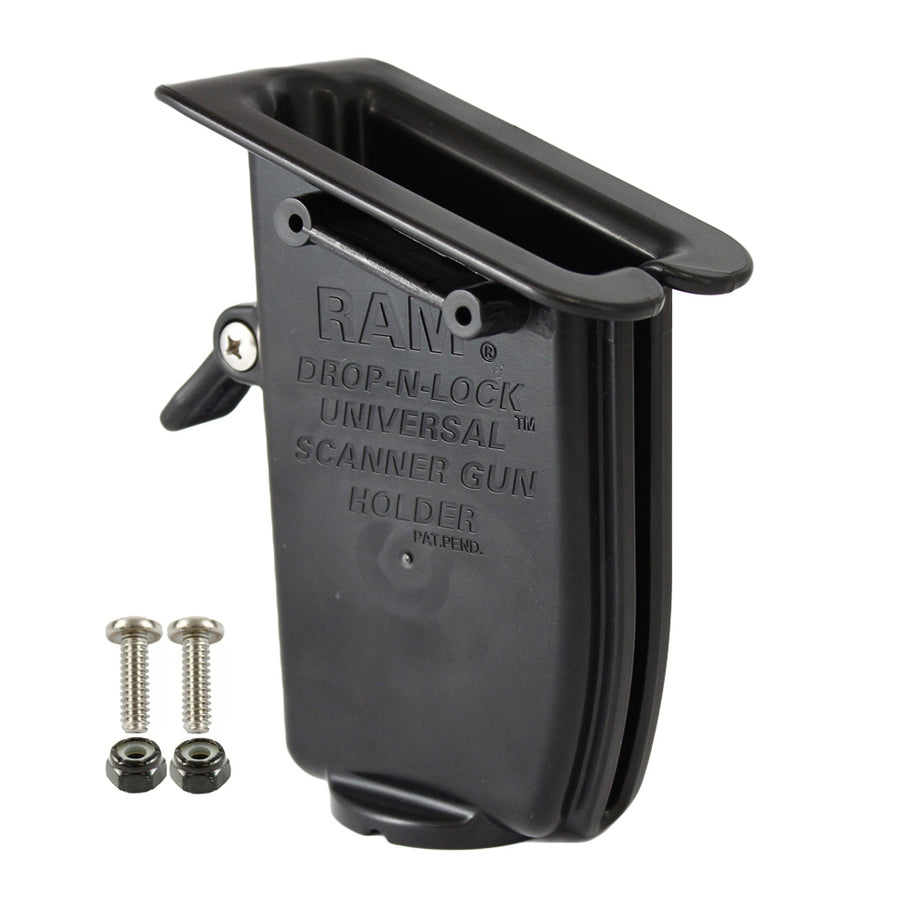

hardware included:

(2) #10-24 x 5/8" Machine Screws
(2) #10-24 Nylock Nuts

internal dimensions:

Width: 1.45"
Length: 3.3"
Depth: 6.5"

hole pattern:

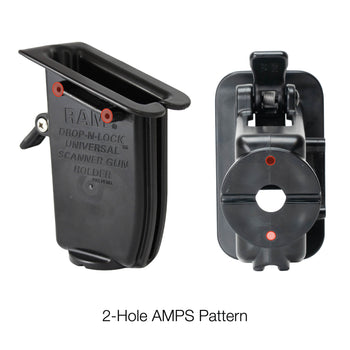

2-Hole AMPS: 1.912" (2 sets)

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.57 lb

Print

Documents

Questions & Answers

Have a Question?

Ask a Question
  • Can the lock function be bypassed or eliminated? Can it be modified to allow the gun to drop in and slide out without the retainer portion?

    Yes, you can remove the spring and lever from the RAP-317U and it will eliminate the lock function.
