Patented

RAM® No-Drill™ Mount for Toyota 4Runner & Tacoma

Part#: RAM-VB-138-SW2
UPC: 793442030079

Compatibility

Toyota

4Runner (2005-2024) Tacoma (2005-2023)

Kit Components

Previous Slide Next Slide
$364.49

Overview

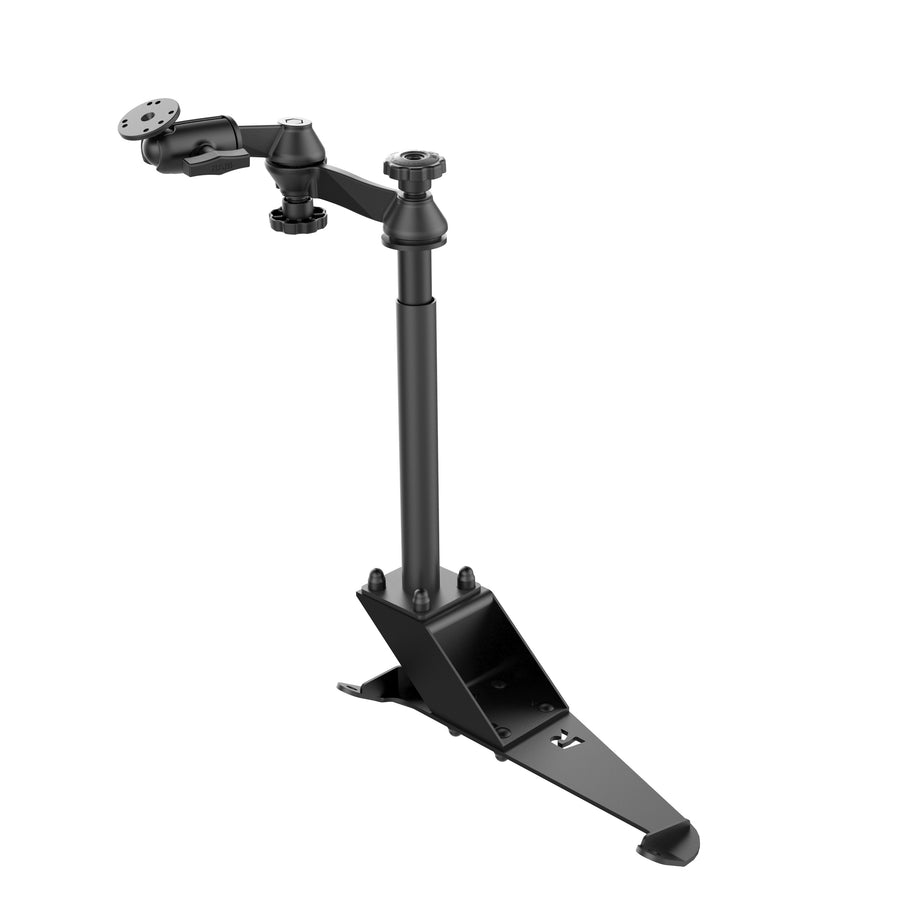

This RAM® No-Drill™ mounting system installs quickly and easily into 2005-2023 model Toyota Tacomas and 4Runners using the existing hardware of the passenger side seat rails. This configuration includes the RAM® Tele-Pole™ that extends the height of the mount from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. Ideal for tablet mounting, the round ball base attaches to the end of the swing arm supports a variety of tablet and laptop holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

Features

  • Custom vehicle mount designed specifically for 2005-2023 Toyota Tacoma and Toyota 4Runner
  • Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet holders and laptop holders
  • Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts
  • Made of powder-coated steel and marine-grade aluminum
  • Backed by a lifetime warranty

hardware included:

Assembly Hardware

hole pattern:

Seat Bolt Distance: 15.875" center to center

ball size:

C Size (1.5")

materials:

Powder coated steel
Marine grade-aluminum

packaging type:

Box

Weight:

13.5 lb

Additional Information:

The RAM-VB-138-SW2 will not fit bench seat trucks.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
RAM® No-Drill™ Mount for Toyota 4Runner & Tacoma
$364.49

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size 1" ball
  • C Size — this product 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C — this product1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
