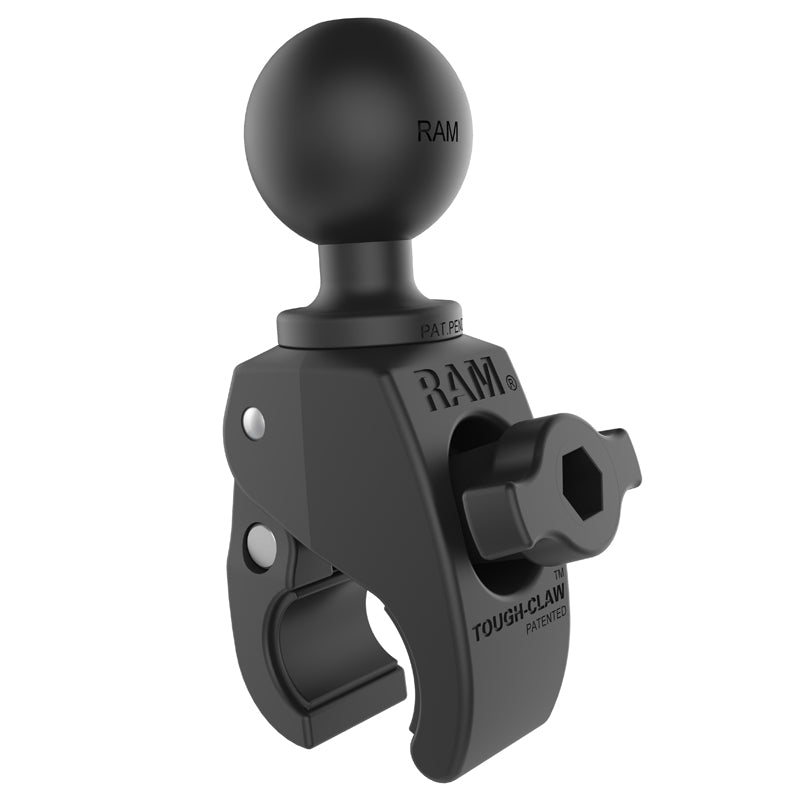

RAM^® Tough-Claw^™ Small Clamp Ball Base
Part #: RAP-400U UPC: 793442943492 Patent Pending Features Small version of the RAM^® Tough-Claw^™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface Included C size 1.5" RAM^® rubber balls allows for connection to any C size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability Made of stainless steel hardware and high-strength composite for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Tough-Claw^™ Small Clamp Ball Base

Part #: RAP-400U UPC: 793442943492 Patent Pending

Features

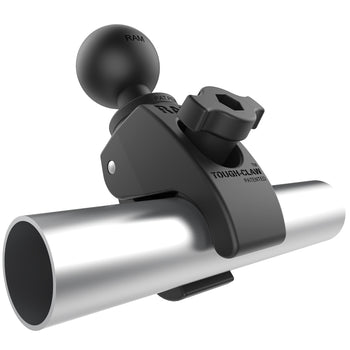

Small version of the RAM^® Tough-Claw^™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
Included C size 1.5" RAM^® rubber balls allows for connection to any C size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of stainless steel hardware and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Tough-Claw<sup>™</sup> Small Clamp Ball Base

Product Information
Overview	The RAM^® Tough-Claw^™ is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The small version of the RAM^® Tough-Claw^™ can quickly be clamped on rails ranging from .625" to 1.14" in outer diameter and is ideal for mounting phones, tablets, action cameras, rod holders, and much more in a wide variety of applications. Perfectly suited for mounting on the yoke of an aircraft, handlebars of bicycles and motorcycles, or even on kayak rails and roll bars, the RAM^® Tough-Claw^™ will soon become another essential RAM^® component in your collection.

Product Information

Overview

The RAM^® Tough-Claw^™ is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The small version of the RAM^® Tough-Claw^™ can quickly be clamped on rails ranging from .625" to 1.14" in outer diameter and is ideal for mounting phones, tablets, action cameras, rod holders, and much more in a wide variety of applications. Perfectly suited for mounting on the yoke of an aircraft, handlebars of bicycles and motorcycles, or even on kayak rails and roll bars, the RAM^® Tough-Claw^™ will soon become another essential RAM^® component in your collection.

Specifications

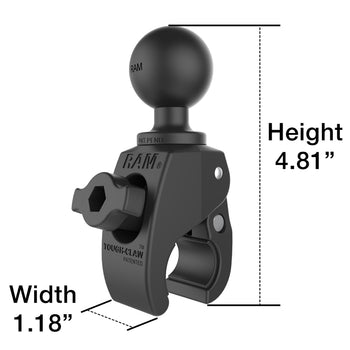

product dimensions	Overall Height: 4.81" Overall Width: 1.18"
clamp range	.625" - 1.14" diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	High strength composite
packaging type	Poly Bag
Weight	0.39 lb

Questions about our products? Email us for support.

Patent Pending

RAM^® Tough-Claw^™ Small Clamp Ball Base

Part#: RAP-400U

UPC: 793442943492

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$44.49

Options

C Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Small version of the RAM^® Tough-Claw^™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
Included C size 1.5" RAM^® rubber balls allows for connection to any C size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of stainless steel hardware and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

product dimensions:

Overall Height: 4.81"
Overall Width: 1.18"

clamp range:

.625" - 1.14" diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.39 lb

Print

Documents

Drawing File - RAM Tough-Claw Base

Material Handling Catalog

Off Road Catalog

Questions & Answers

Have a Question?

Ask a Question

Is this a good choice for oddly shaped or oblong rails and handles?

Yes, this mount is excellent for oddly shaped attachment points.
Is there a lock available for this tough claw.

I'm sorry but there is no lock available for this tough claw.
