RAM® Track Ball™ Base with T-Bolt Attachment - C Size

Part #: RAP-354U-TRA1 UPC: 793442940194

Features

Designed for track mounting systems including the RAM® Tough-Track™; includes 1.5" C size rubber ball
Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® Track Ball™ Base with T-Bolt Attachment - C Size

Product Information

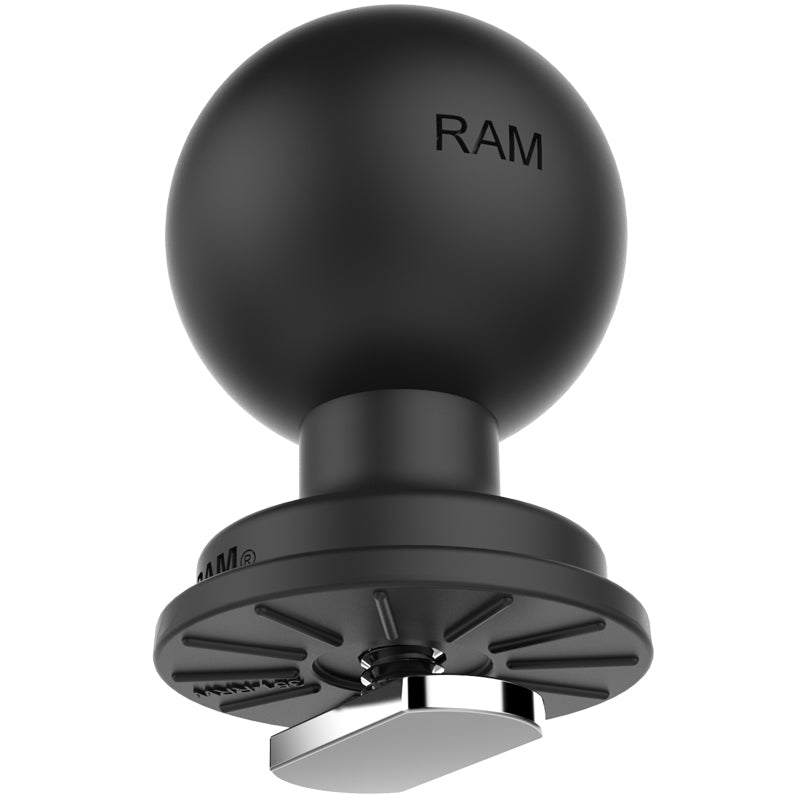

Overview	The RAM Track Ball is made up of a C size 1.5" rubber ball molded to a high strength composite base, a rubber friction washer and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the Track Ball into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball.

Specifications
hardware included	(1) Friction Washer (1) 1/4"-20 x 7/8" T-Bolt
plate size	0.48" x 0.95" T-Bolt
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	High strength composite
packaging type	Poly Bag
Weight	0.15 lb

RAM® Track Ball™ Base with T-Bolt Attachment - C Size

Name: RAM® Track Ball™ Base with T-Bolt Attachment - C Size
Brand: RAM Mounts
SKU: RAP-354U-TRA1
Price: 19.99 USD
Availability: InStock

Part#: RAP-354U-TRA1

UPC: 793442940194

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$19.99

Options

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

RAM® Double Socket Arm - C Size Medium

$31.49

Overview

The RAM Track Ball is made up of a C size 1.5" rubber ball molded to a high strength composite base, a rubber friction washer and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the Track Ball into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball.

Features

Designed for track mounting systems including the RAM® Tough-Track™; includes 1.5" C size rubber ball
Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt

plate size:

0.48" x 0.95" T-Bolt

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.15 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

On Water Catalog

Knowledge Base: Ball Sizes

QUESTIONS & ANSWERS

Have a Question?

Ask a Question

Is this mount compatible with the Lund Sport Track?

No, Lund uses a proprietary track system. Unfortunately, this track base will not work with their tracks.
Part#: RAP-354U-TRA1 Does the hole that is shown on top of the mount go completely thru the mount and line up with the molded 1/4 20 threads that are in the base? If it does not, is it possible to be drilled? Reason... I want to mount the ball in my 2023 Yamaha wave runner cup holder that comes from the factory with a 1/4 20 threaded insert in the bottom of the cup holder. Thank you for your assistance,

No, it does not go completely through the mount and line up with the molded 1/4"-20 threads. For the Waverunner cupholder, the c-size ball we recommend is RAP-379U-252025.
Is this mount compatible with the T-slots in 40-series aluminum profile?

Our T-Bolt is .48" x .95" this size will not fit into 40-series aluminum, its opening is only .323" and will not accommodate the width of the T-Bolt.
Will this work with the Rhino Rack Pioneer platform?

No, RAM does not currently offer any products compatible with the Rhino Rack Pioneer Platforms.
Is this compatible with "L" track (sometimes called mac track?)

No, Our track bases are not compatible with L track.
