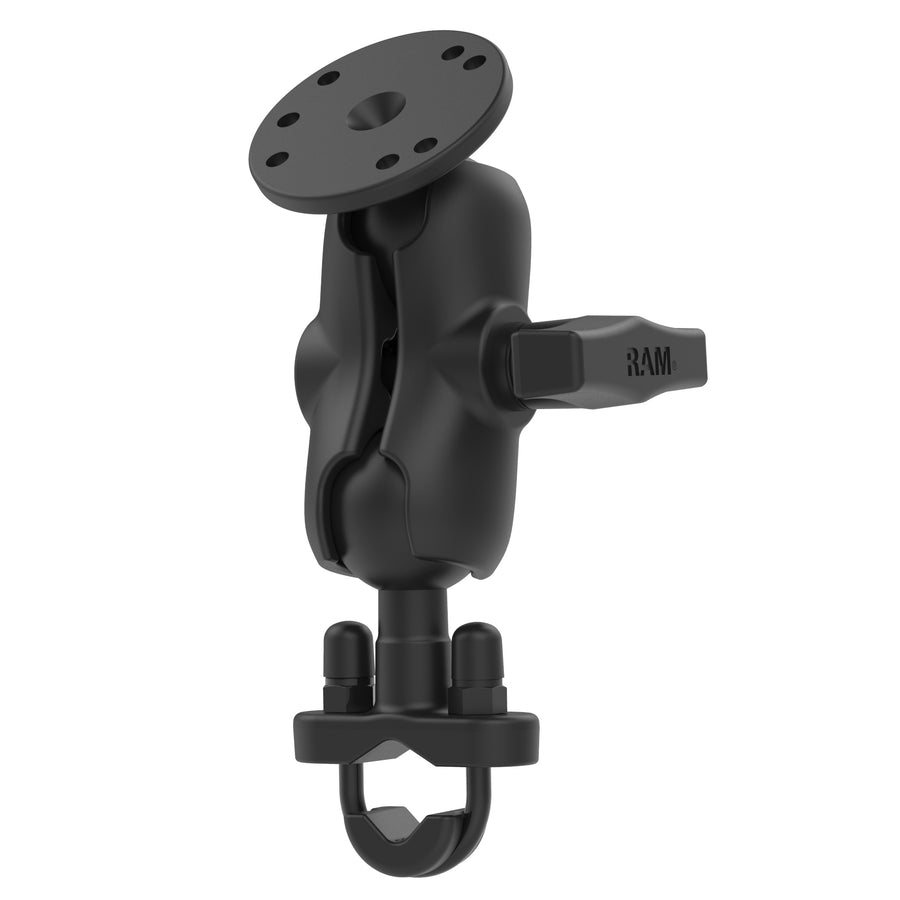

RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - C Size Short
$62.99
Features
- Motorcycle or ATV/UTV handlebar/rail mount ideal for attaching a tablet holder; connects to RAM® device holders containing the universal AMPS hole pattern
- Includes, C size (1.5") 4-hole round RAM® ball adapter, U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum components for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
The RAM® Handlebar U-Bolt Double Ball Mount with Round Plate consists of a C size (1.5") zinc coated u-bolt base, short C size double socket arm and C size RAM® round base adapter for attaching a tablet holder. The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM® Mount and/or third party tablet holders. Included in this package is hardware that will accommodate handlebars and rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM® C size 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. This mount is ideal for securely mounting a tablet to a motorcycle or ATV/UTV vehicle.
RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - C Size Short
Overview

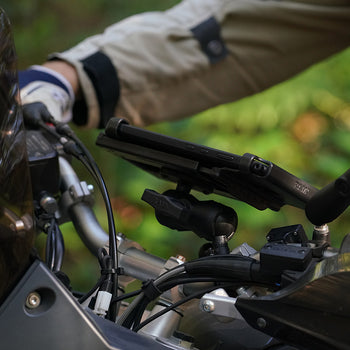

The RAM® Handlebar U-Bolt Double Ball Mount with Round Plate consists of a C size (1.5") zinc coated u-bolt base, short C size double socket arm and C size RAM® round base adapter for attaching a tablet holder. The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM® Mount and/or third party tablet holders. Included in this package is hardware that will accommodate handlebars and rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM® C size 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. This mount is ideal for securely mounting a tablet to a motorcycle or ATV/UTV vehicle.
hardware included
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range
.5" - 1.25" diameter
socket to socket length
2.5"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
1.02 lb
