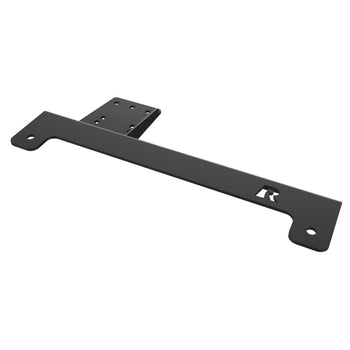

RAM® No-Drill™ Mount for '19-25 Chevy Silverado, Tahoe & More | |
---|---|
Part #:
RAM-VB-203-SW2
UPC:
793442009563
Patented
Features
|
![]() |
Product Information | |
---|---|
Overview | This RAM® No-Drill™ mounting system installs quickly and easily into the 2019-2025 Chevrolet Silverado and GMC Next Generation Sierra using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. |
Specifications | |
---|---|
hardware included | Assembly Hardware Foot Stabilizer |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter Seat Bolt Distance: 17.5" center to center |
plate size | 2.5" Diameter |
ball size | C Size (1.5") |
weight capacity | Standard Use: 4 lbs Heavy-Duty Use: 3 lbs |
materials | Powder coated steel Marine grade-aluminum |
packaging type | Box |
Weight | 13.5 lb |
Additional Information | This mount is not compatible with the 2019 Silverado 1500 LD. For compatibility with this vehicle, see RAM-VB-193-SW2. |

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Vehicles
Chevrolet
Silverado 1500 (2019-2025)
Silverado 2500 (2020-2025)
Silverado 3500 (2020-2025)
Suburban (2021-2025)
Tahoe (2021-2025)
GMC
Next Generation Sierra 1500 (2019-2025)
Sierra 2500/HD (2020-2025)
Sierra 3500/HD (2020-2025)
Yukon/Yukon XL (2021-2025)

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Vehicles
Chevrolet
Silverado 1500 (2019-2025)
Silverado 2500 (2020-2025)
Silverado 3500 (2020-2025)
Suburban (2021-2025)
Tahoe (2021-2025)
GMC
Next Generation Sierra 1500 (2019-2025)
Sierra 2500/HD (2020-2025)
Sierra 3500/HD (2020-2025)
Yukon/Yukon XL (2021-2025)

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-VB-203-SW2!
We'll email you once the item is available.
Overview
This RAM® No-Drill™ mounting system installs quickly and easily into the 2019-2025 Chevrolet Silverado and GMC Next Generation Sierra using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.
Features
- Custom laptop vehicle mount designed specifically for 2019-2025 Chevy Silverado 1500, 2020-2025 Chevy Silverado 2500 & 3500, 2021-2025 Chevy Tahoe, GMC Sierra 1500, 2020-2025 Sierra HD 2500 & Sierra HD 3500
- Dual articulating swing arms allow for ideal device placement; compatible with a variety of tablet holders and laptop holders
- Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts
- Made of powder-coated steel and marine-grade aluminum
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
Foot Stabilizer
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 17.5" center to center
plate size:
2.5" Diameter
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Powder coated steel
Marine grade-aluminum
packaging type:
Box
Weight:
13.5 lb
Additional Information:
This mount is not compatible with the 2019 Silverado 1500 LD. For compatibility with this vehicle, see RAM-VB-193-SW2.
