RAM^® Tele-Pole^™ with 12" & 9" Poles, Double Swing Arms & Round Plate
Part #: RAM-VP-SW1-129 UPC: 793442935367 Patented Features Dual articulating swing arms allows for ideal device placement Compatible with a variety of RAM^® laptop, tablet, and other device holders Made of powder-coated steel and marine-grade aluminum Backed by a lifetime warranty

Product Information

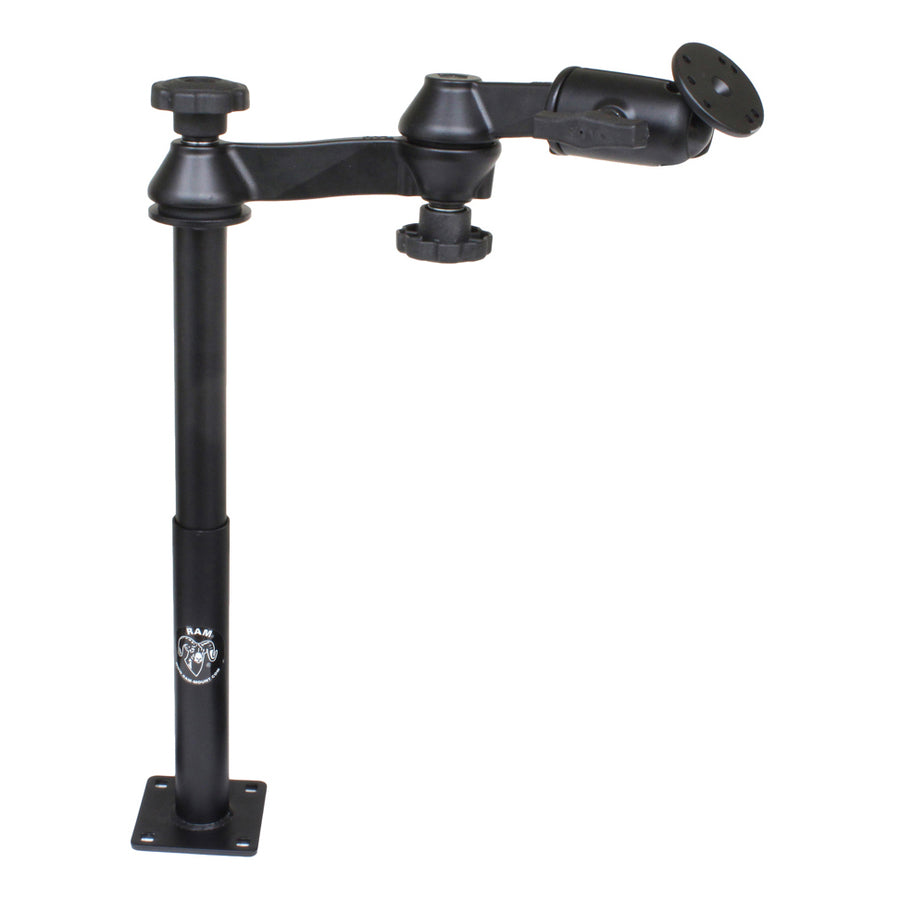

Overview	The RAM-VP-SW1-129 consists of a 9" lower female Tele-Pole^™, 12" upper male Tele-Pole^™, double swing arm and 2.5" round base that contains the universal AMPs hole pattern. The lower female Tele-Pole^™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole^™. The height of the Tele-Poles^™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole^™ becomes a rigid support for connecting devices or cradles. The double swing arm allows you to twist and tilt the viewing angle of your connected electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12".

Product Information

Overview

The RAM-VP-SW1-129 consists of a 9" lower female Tele-Pole^™, 12" upper male Tele-Pole^™, double swing arm and 2.5" round base that contains the universal AMPs hole pattern. The lower female Tele-Pole^™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole^™. The height of the Tele-Poles^™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole^™ becomes a rigid support for connecting devices or cradles. The double swing arm allows you to twist and tilt the viewing angle of your connected electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12".

Specifications
hardware included	Assembly Hardware (4) 5/16"-18 x 1" Carriage Bolts (4) 5/16"-18 Hex Nuts (4) 5/16" Flat Washers (4) 5/16" Split Lock Washers (4) Rubber Caps
product dimensions	Minimum Height: 20.3" Maximum Height: 25.3"
hole pattern	Tele-Pole: 2.625" x 2.625" Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
plate size	Round Plate: 2.5" Diameter Lower Pole: 3.5" x 3.5"
ball size	C Size (1.5")
materials	Powder coated steel Marine-grade aluminum
packaging type	Poly Bag
Weight	6.35 lb

RAM<sup>®</sup> Tele-Pole<sup>™</sup> with 12" & 9" Poles, Double Swing Arms & Round Plate

Questions about our products? Email us for support.

Patented

RAM^® Tele-Pole^™ with 12" & 9" Poles, Double Swing Arms & Round Plate

Part#: RAM-VP-SW1-129

UPC: 793442935367

C Size

Size Guide

Ball Size
Arm Sizes

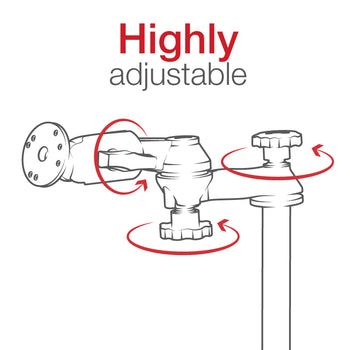

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
