RAM^® Drill-Down Dashboard Ball Base with Backing Plate - C Size
Part #: RAM-202-225-2U UPC: 793442848995 Features 2.5" round plate with C size 1.5" rubber ball connects to included 2.10" x 2.60" steel backing plate that connects to RAM^® components containing the universal AMPS hole pattern Connect a C size RAM^® double socket arm and device holder for your use-case; ball and socket technology allows for near-infinite adjustability Components made of powder-coated, marine-grade aluminum, and steel for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Drill-Down Dashboard Ball Base with Backing Plate - C Size

Part #: RAM-202-225-2U UPC: 793442848995

Features

2.5" round plate with C size 1.5" rubber ball connects to included 2.10" x 2.60" steel backing plate that connects to RAM^® components containing the universal AMPS hole pattern
Connect a C size RAM^® double socket arm and device holder for your use-case; ball and socket technology allows for near-infinite adjustability
Components made of powder-coated, marine-grade aluminum, and steel for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Drill-Down Dashboard Ball Base with Backing Plate - C Size

Product Information

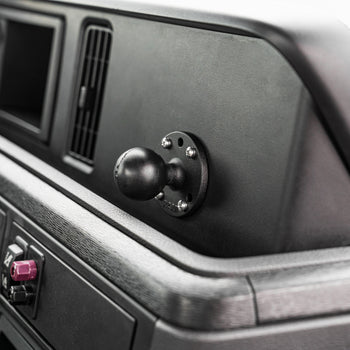

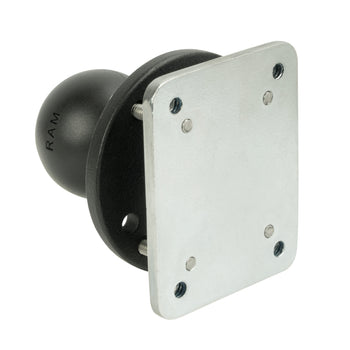

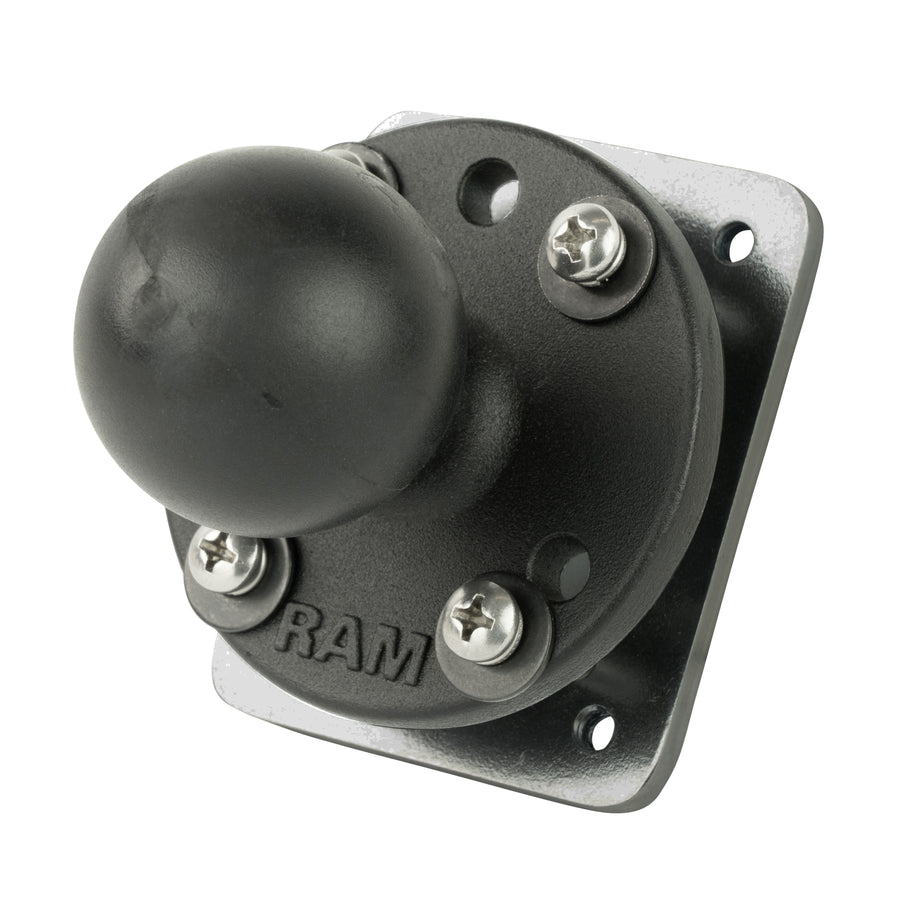

Overview	Meet your new go-to mount and component option for pairing any holder or dock with a dashboard drill-down mount. The RAM-202-225-2U consists of a 1.5" C size rubber ball connected to a 2.5" diameter round plate with the universal AMPS hole pattern and one 2.10” x 2.60” steel backing plate (hardware included). Connect a C size RAM^® double socket arm and device holder that's perfect for your use-case. RAM^®'s patented rubber ball and socket technology dampens shock and vibration and allows for near-infinite adjustment, enabling perfect viewing and operating angle of your device.

Product Information

Overview

Meet your new go-to mount and component option for pairing any holder or dock with a dashboard drill-down mount. The RAM-202-225-2U consists of a 1.5" C size rubber ball connected to a 2.5" diameter round plate with the universal AMPS hole pattern and one 2.10” x 2.60” steel backing plate (hardware included). Connect a C size RAM^® double socket arm and device holder that's perfect for your use-case. RAM^®'s patented rubber ball and socket technology dampens shock and vibration and allows for near-infinite adjustment, enabling perfect viewing and operating angle of your device.

Specifications
hardware included	(1) 2.10" x 2.60" Steel Backing Plate (4) #8-32 x 1" Machine Screws (4) #8 Split Lock Washers (4) #8 Flat Washers
hole pattern	Round Plate: 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum Steel
packaging type	Poly Bag
Weight	0.5 lb

Video Thumbnail — YouTube video thumbnail for Uuf9odZCCmE

Questions about our products? Email us for support.

RAM^® Drill-Down Dashboard Ball Base with Backing Plate - C Size

Part#: RAM-202-225-2U

UPC: 793442848995

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
