Overview

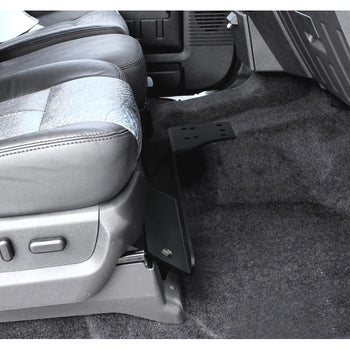

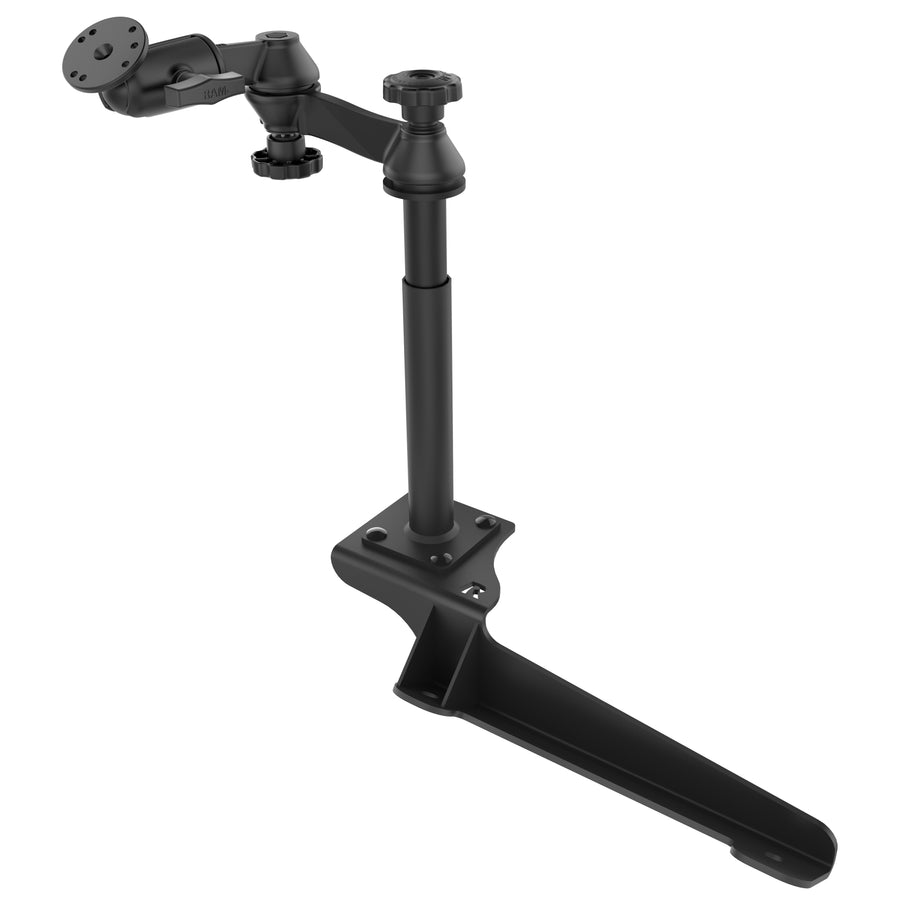

This RAM® No-Drill™ mounting system installs quickly and easily into a range of Ford F-Series and Ford Excursion vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.
Features

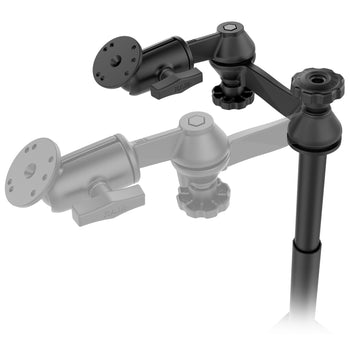

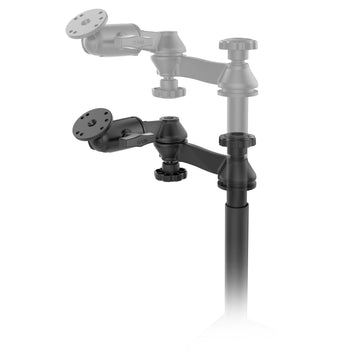

- RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

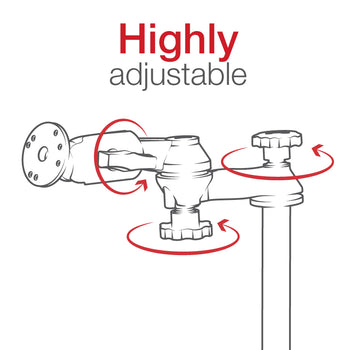

- Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet and laptop holders
- Made of powder-coated steel and marine-grade aluminum
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
(2) M12-1.75 x 100mm Hex Bolts
(2) M12-1.75 x 60mm Hex Bolts
(2) M12 Lock Washers
(2) 3/8" Stand-Offs
(2) 1" Stand-Offs
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 11.5" center to center
plate size:
2.5" Diameter
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Powder coated steel
Marine grade-aluminum
packaging type:
Box
Weight:
15.0 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
Instructions
Documents
QUESTIONS & ANSWERS
Have a Question?
-
Are your vertical poles 1.5" diameter? Eg; RAM-VB-195-SW2
The lower tele-poles are 1.5" OD and the upper tele-poles are 1.312" OD.
