RAM^® No-Drill^™ Mount for '19-25 Ram 1500 Pickup Trucks (5th Gen)
Part #: RAM-VB-186ST1-SW2 UPC: 793442009655 Patented Features RAM^® No-Drill^™ base offers low-profile mounting; telescoping pole allows for height adjustments Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet and laptop holders Made of powder-coated steel and marine-grade aluminum Backed by a lifetime warranty

Product Information

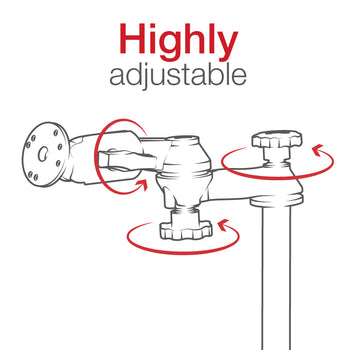

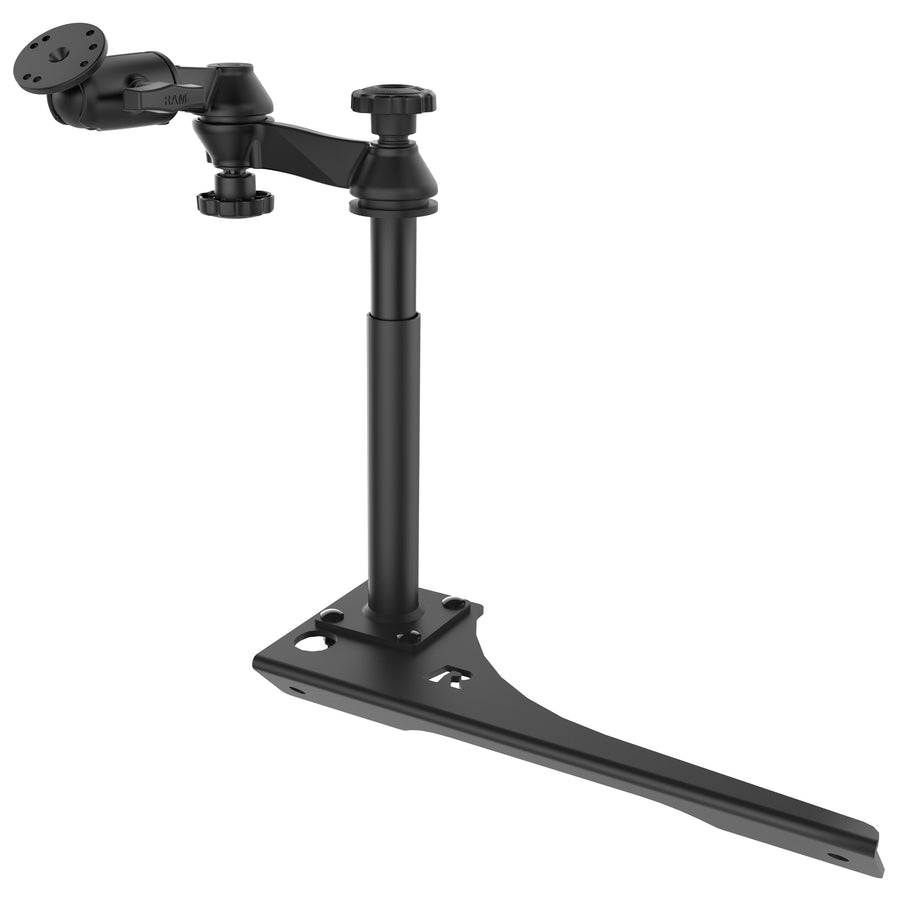

Overview	This RAM^® No-Drill^™ mounting system installs quickly and easily into the 5th Gen Ram 1500 (2019 2023) using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

Product Information

Overview

This RAM^® No-Drill^™ mounting system installs quickly and easily into the 5th Gen Ram 1500 (2019 2023) using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM^® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

Specifications
hardware included	Assembly Hardware (2) M10-1.5 x 70mm Hex Bolts (2) 1.68" Stand-Offs (2) 3/8" Fender Washers
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter Seat Bolt Distance: 15.125" center to center
plate size	2.5" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Powder coated steel Marine grade-aluminum
packaging type	Box
Weight	12.0 lb
Additional Information	This mount is not compatible with any RAM "Classic" trucks. For the Classic vehicles, please see RAM-VB-178A-SW2.

RAM<sup>®</sup> No-Drill<sup>™</sup> Mount for '19-23 Ram 1500 Pickup Trucks (5th Gen)

Questions about our products? Email us for support.

Patented

RAM^® No-Drill^™ Mount for '19-25 Ram 1500 Pickup Trucks (5th Gen)

Part#: RAM-VB-186ST1-SW2

UPC: 793442009655

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
