RAM^® Tough-Mag^™ 88MM Diameter Magnetic Ball Base - C Size
Part #: RAM-238-MAG88U UPC: 793442020056 Features Magnetic base contains 2-hole AMPS pattern with M4 threaded inserts for attaching B or C size RAM^® 2-hole AMPS diamond ball bases Includes C size (1.5") RAM^® 2-hole AMPS pattern ball base for connection to any C size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum and rubber for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Tough-Mag^™ 88MM Diameter Magnetic Ball Base - C Size

Part #: RAM-238-MAG88U UPC: 793442020056

Features

Magnetic base contains 2-hole AMPS pattern with M4 threaded inserts for attaching B or C size RAM^® 2-hole AMPS diamond ball bases
Includes C size (1.5") RAM^® 2-hole AMPS pattern ball base for connection to any C size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum and rubber for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Tough-Mag<sup>™</sup> 88MM Diameter Magnetic Ball Base - C Size

Product Information

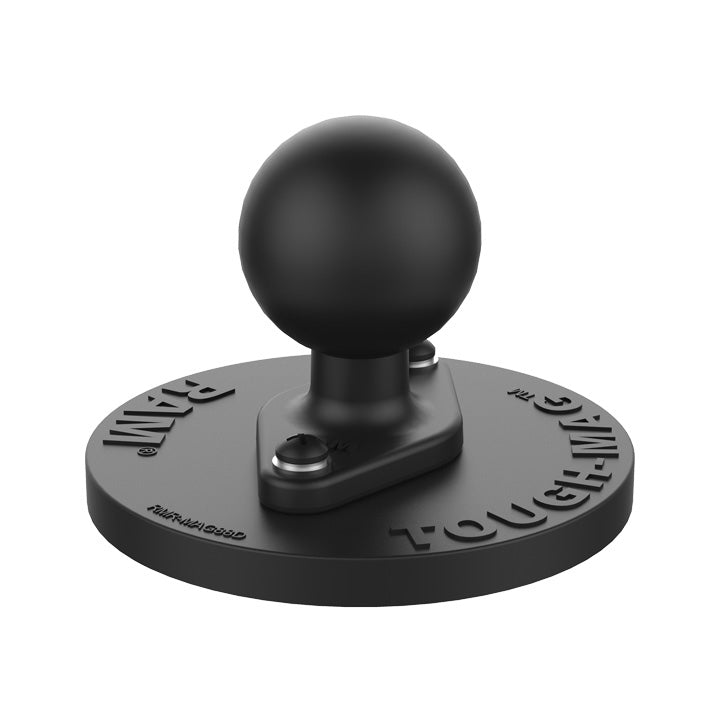

Overview	The RAM^® Tough-Mag^™ base consists of a C size 1.5" diameter 2-hole AMPS pattern diamond ball base connected to a flat 88mm diameter magnetic base. The magnetic base contains two M4 threaded inserts to attach the included C size diamond base and is designed with a rubber exterior to prevent scratching the mounting surface. Attach any C size double socket arm and your desired holder to complete the magnetic mount.

Product Information

Overview

The RAM^® Tough-Mag^™ base consists of a C size 1.5" diameter 2-hole AMPS pattern diamond ball base connected to a flat 88mm diameter magnetic base. The magnetic base contains two M4 threaded inserts to attach the included C size diamond base and is designed with a rubber exterior to prevent scratching the mounting surface. Attach any C size double socket arm and your desired holder to complete the magnetic mount.

Specifications
hole pattern	2-Hole AMPS 1.912"
plate size	3.46" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum Rubber
packaging type	Poly Bag
Weight	0.71 lb

RAM<sup>®</sup> Tough-Mag<sup>™</sup> 88MM Diameter Diamond Ball Base - C Size

Questions about our products? Email us for support.

RAM^® Tough-Mag^™ 88MM Diameter Magnetic Ball Base - C Size

Part#: RAM-238-MAG88U

UPC: 793442020056

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$71.99

Options

C Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
