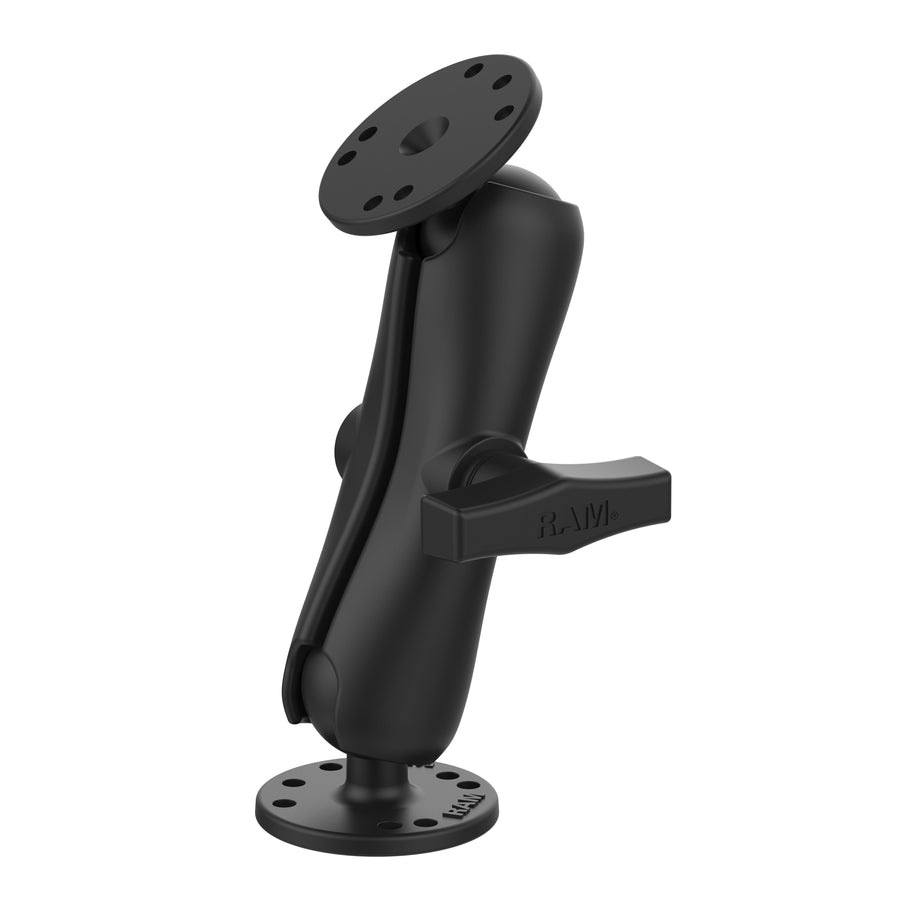

RAM® Double Ball Mount with Two Round Plates - C Size Medium
Part#: RAM-101U
UPC: 793442001017
Ball Icon C Size
Arm Icon Medium Arm
$61.99

Overview

The RAM-101U consists of a 6 inch C size 1.5" double socket arm and two 2.5" diameter round ball bases that contain the universal AMPS hole pattern. The ball and socket system provides shock and vibration damping, and allows for near-infinite adjustability to achieve an ideal viewing and operating angle of your device.

Features

  • Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders
  • Includes two round ball bases and C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

product dimensions:

Overall Height: 7.35"

socket to socket length:

4.66"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size:

2.5" Diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

1.15 lb

Print

Questions & Answers

Have a Question?

Ask a Question
  • What size screws are needed for the holes on this ball plate?

    The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.

  • Can this base (Ram 101-U) fix to the 6 in swing arm extension?

    The RAM-101-U will not connect with the Swing arm extentions. The RAM-101-u is designed to be used on it own.

  • Rammount products are said to be resistant to vibration and shock, so please let me know if you have any clear test data.(Data containing RAM-202 and RAM-201)

    We do not publish our test data but the patented design utilizes a rubber ball and socket that greatly reduces the amount vibration that can be transmitted into electronics.

  • Can this be mounted to RAP-299-3U?

    Yes, the holes of the round plate will line up with two indents on the top of the RAP-299-3U. Those indents are hollowed out points where the provided screws can drill in to secure the base. However, this C Size double ball mount is often meant to hold larger, heavy duty devices that could potentially be too top heavy for any cup holder mounting application. Cup holder mounts are most often recommend for small handheld devices such as phones, radios, GPS, and small tablets.
