RAM^® Twist-Lock^™ Triple Suction Cup Base with Ball
Part #: RAM-224-3U UPC: 793442921100 Patented

Product Information

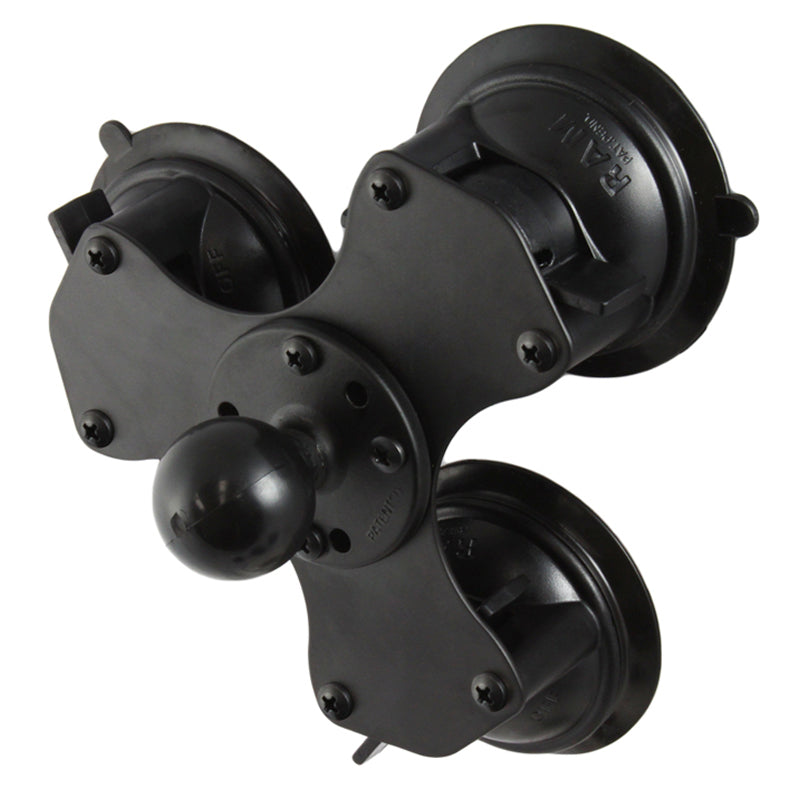

Overview	The RAM-224-3U consists of a triple suction cup base with 1.5" diameter ball. The RAM-224-3U is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the RAM-224-3U on a glass or non-porous plastic surface.

Specifications
hardware included	Assembly Hardware
suction size	(3) 3.3" Diameter Bases, Total Width 7.95"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Powder coated steel High strength composite
packaging type	Poly Bag
Weight	1.14 lb

RAM<sup>®</sup> Twist-Lock<sup>™</sup> Triple Suction Cup Base with Ball

Questions about our products? Email us for support.

Patented

RAM^® Twist-Lock^™ Triple Suction Cup Base with Ball

Part#: RAM-224-3U

UPC: 793442921100

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$63.49

Options

C Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAM-224-3U consists of a triple suction cup base with 1.5" diameter ball. The RAM-224-3U is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the RAM-224-3U on a glass or non-porous plastic surface.

hardware included:

Assembly Hardware

suction size:

(3) 3.3" Diameter Bases, Total Width 7.95"

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Powder coated steel
High strength composite

packaging type:

Poly Bag

Weight:

1.14 lb

Print

Instructions

RAM^® Twist-Lock^™ Suction Cup Assembly Guide

Questions & Answers

Have a Question?

Ask a Question

Can I use these suction cups mounts for a gopro 13?

Yes, we have the following kit for GOPRO RAM® Twist-Lock™ Suction Cup Mount with Action Camera Adapter - Medium – RAM Mounts
What’s the difference between the steel and composite plate?

The only difference is the plate adaptor and what is made of:
RAP-365-224-1U (Composite Plate) is Marine-gradealuminum High strength composite https://rammount.com/products/rap-365nsu
RAM-224-3U (Steel Plate) Powder coated steel Highstrength composite https://rammount.com/products/ram-224-3bpu
Regards: RAM Triple Suction Mount RAM 224-3U (ball size C)What weight can a properly mounted RAM 224-3U support? I ask because I want to support a vesa mounted 4 pound 6 ounce; 7"x10" monitor on the glass of a windshield.

The RAM-224-3U is rated for 4lbs.
