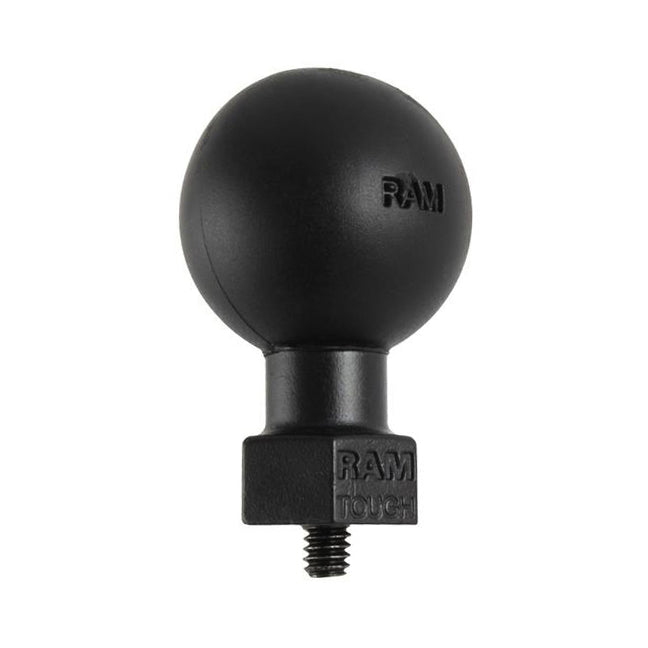

RAM® Tough-Ball™ with 1/4"-20 x .25" Threaded Stud - C Size | |
---|---|
Part #:
RAP-379U-252025
UPC:
793442936005
Features
|
![]() |
Product Information | |
---|---|
Overview | Introducing the new RAM Tough-Ball™. Why call it tough? Because this latest addition to the RAM product line has steel inside and out. The seamless transition between RAM versatility and steel durability allows for a multitude of real world, and out of this world, applications. With so many of the things we use incorporating threads and fasteners, there really is no limit to the number of uses you'll find for the RAM Tough-Ball™. The RAP-379U-252025 consists of a 1.5" diameter rubber ball, connected to a 1/4"-20 X .25" male threaded post. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera. |
Specifications | |
---|---|
thread pitch | 1/4"-20 x .25" |
ball size | C Size (1.5") |
weight capacity | Standard Use: 4 lbs Heavy-Duty Use: 3 lbs |
materials | High strength composite Stainless steel threads |
packaging type | Poly Bag |
Weight | 0.15 lb |

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAP-379U-252025!
We'll email you once the item is available.
Overview
Introducing the new RAM Tough-Ball™. Why call it tough? Because this latest addition to the RAM product line has steel inside and out. The seamless transition between RAM versatility and steel durability allows for a multitude of real world, and out of this world, applications. With so many of the things we use incorporating threads and fasteners, there really is no limit to the number of uses you'll find for the RAM Tough-Ball™. The RAP-379U-252025 consists of a 1.5" diameter rubber ball, connected to a 1/4"-20 X .25" male threaded post. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.
Features
- RAM® Tough-Ball™ features a 1/4"-20 x .25" male threaded post for connection to a variety of devices
- Included C size 1.5" RAM® rubber balls allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites with stainless steel thread post for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
thread pitch:
1/4"-20 x .25"
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
High strength composite
Stainless steel threads
packaging type:
Poly Bag
Weight:
0.15 lb
