Overview

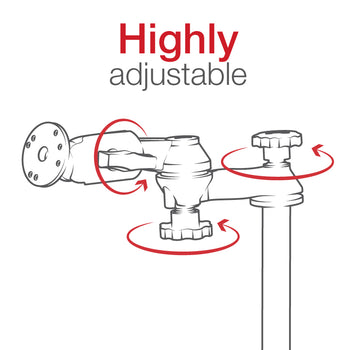

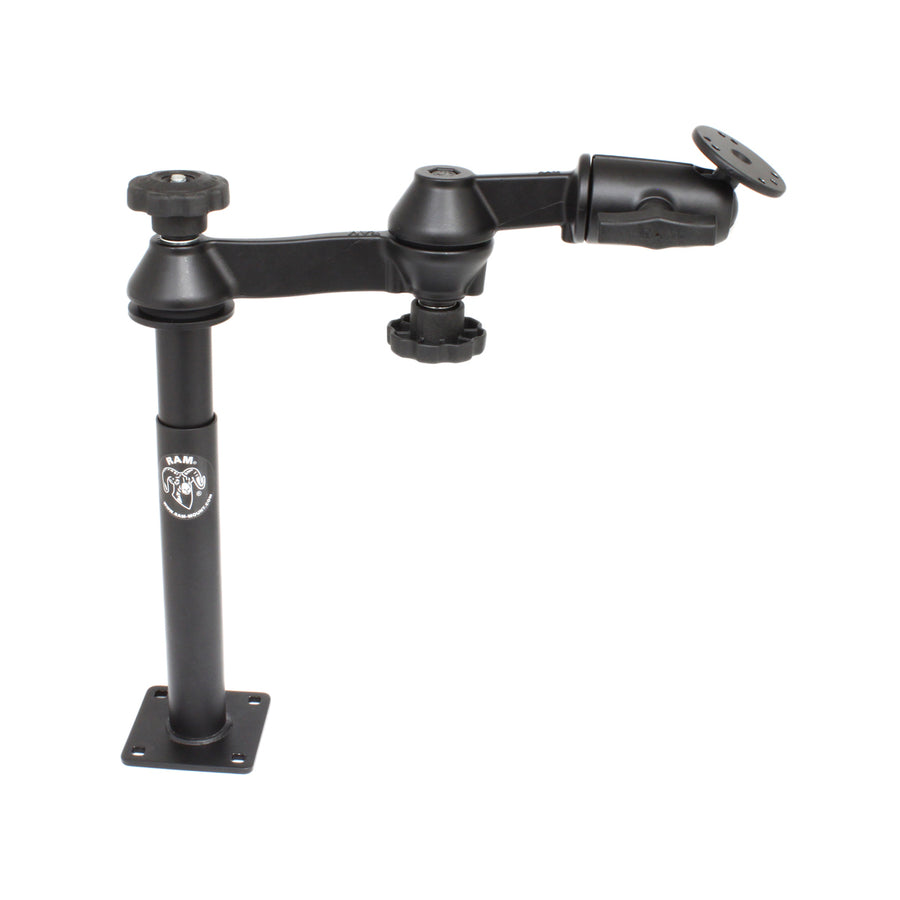

The RAM-VP-SW1-89 consists of a 9" lower female Tele-Pole™, 8" upper male Tele-Pole™, double swing arm and 2.5" round base that contains the universal AMPs hole pattern. The lower female Tele-Pole™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The double swing arm allows you to twist and tilt the viewing angle of your connected electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12".
Features
- Dual articulating swing arms allows for ideal device placement
- Compatible with a variety of RAM® laptop, tablet, and other device holders
- Made of powder-coated steel and marine-grade aluminum
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps
product dimensions:
Minimum Height: 16.3"
Maximum Height: 21.3"
hole pattern:
Tele-Pole: 2.625" x 2.625"
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
plate size:
Round Plate: 2.5" Diameter
Lower Pole: 3.5" x 3.5"
ball size:
C Size (1.5")
materials:
Powder coated steel
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
5.93 lb
Questions & Answers
Have a Question?
-
Is this a good choice for a marine application?
This part is made of steal which does not hold up in a marine environment as well as our aluminum parts do. This mount is not likely to hold up well in that type of environment, unfortunately.
