RAM^® Double Ball Mount with Excalibur Mounting Hardware
Part #: RAM-101U-B-EX1 UPC: 793442916274

Product Information

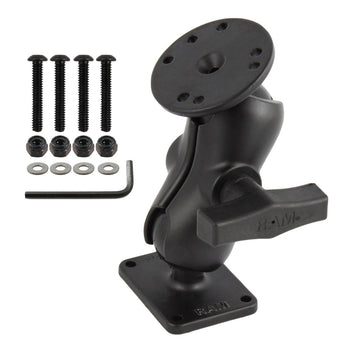

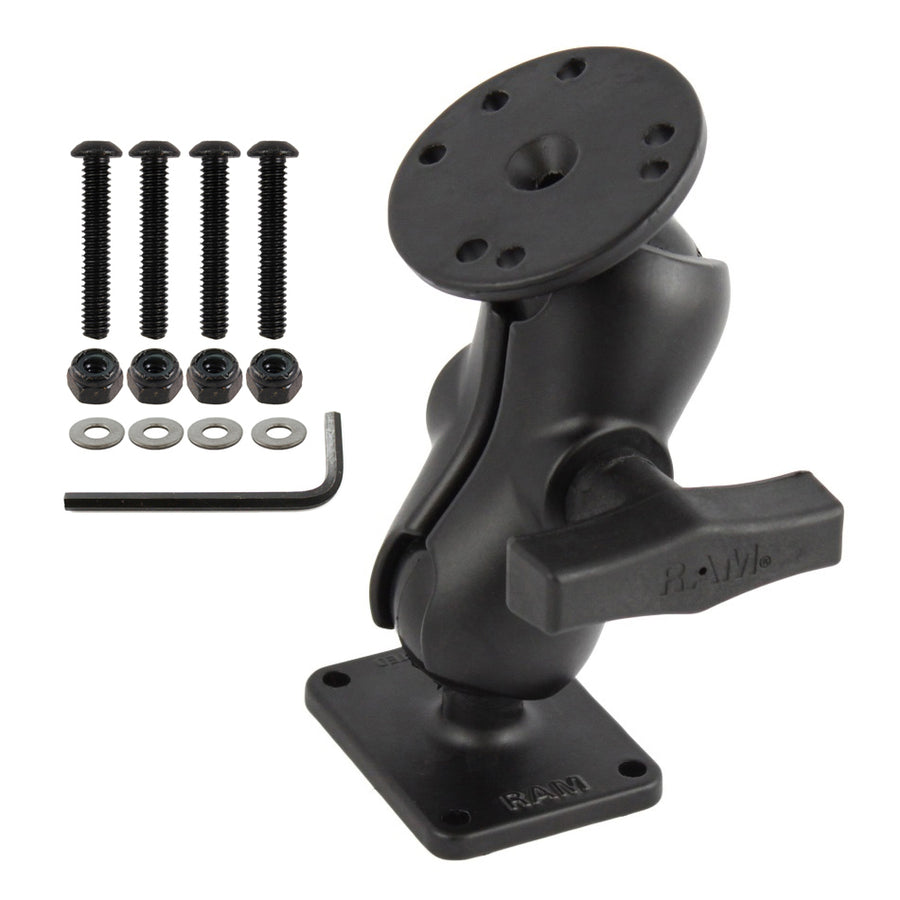

Overview	Universal 3 inch double socket arm mount with a square base and a round base. Both bases have the AMPS hole pattern. The mount is 5.24" tall at maximum extension and is collapsible. Constructed of marine grade aluminum with stainless hardware and black powder coat finish. Rubber ball and socket feature dampens shock and vibration. For most applications, mount will support up to four pounds.

Specifications
hardware included	(4) 1/4"-20 x 1.5" Machine Screws (4) 1/4"-20 Nylock Nuts (4) 1/4" Stainless Steel Washers (1) 5/32" Key Wrench
product dimensions	Overall Height: 5.225"
socket to socket length	2.5"
hole pattern	Round Plate: 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter Rectangular Plate: 1.5" x 2"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	1.05 lb

RAM<sup>®</sup> Double Ball Mount with Excalibur Mounting Hardware

Questions about our products? Email us for support.

RAM^® Double Ball Mount with Excalibur Mounting Hardware

Part#: RAM-101U-B-EX1

UPC: 793442916274

C Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$67.99
