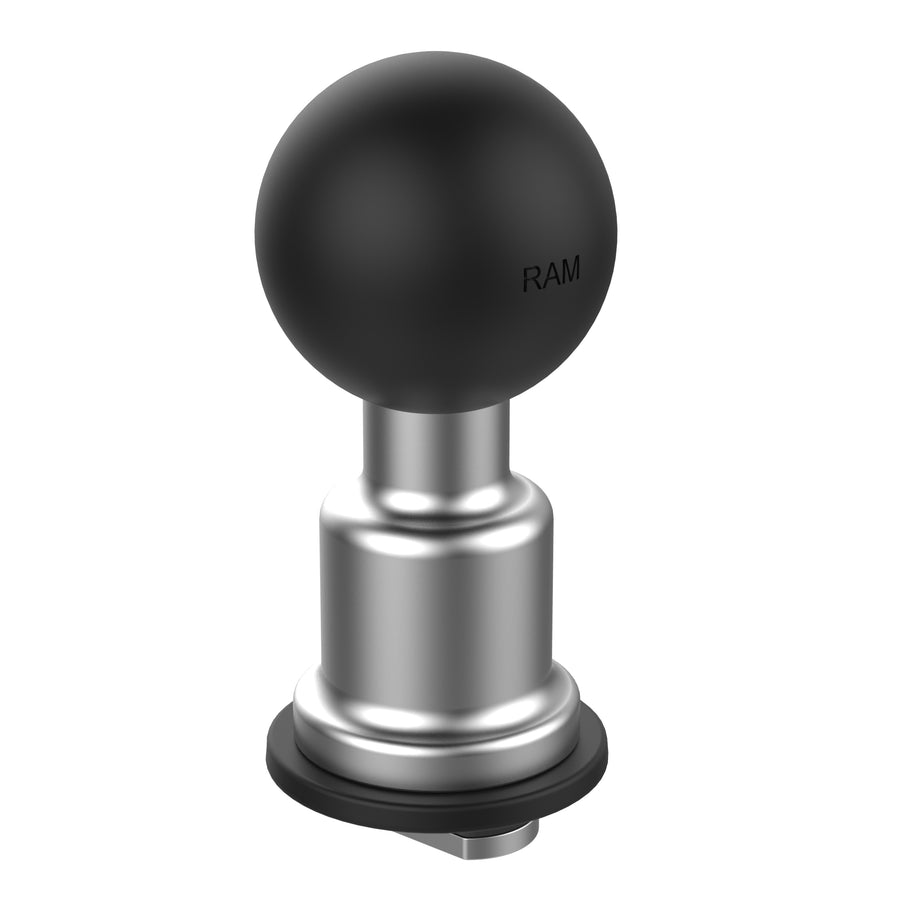

RAM® Aluminum Track Ball Base with T-Bolt Attachment - C Size

rammount.com
1-800-497-7479
sales@rammount.com

RAM^® Aluminum Track Ball Base with T-Bolt Attachment - C Size
Part #: RAM-463-TRA1U UPC: 793442131059 Features Designed for track mounting systems including the RAM^® Tough-Track^™; includes 1.5" C size rubber ball with pin-lock and 1/4-20" threaded hole with T-bolt Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten Made of marine-grade aluminum, stainless steel components for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Aluminum Track Ball Base with T-Bolt Attachment - C Size

Part #: RAM-463-TRA1U UPC: 793442131059

Features

Designed for track mounting systems including the RAM^® Tough-Track^™; includes 1.5" C size rubber ball with pin-lock and 1/4-20" threaded hole with T-bolt
Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten
Made of marine-grade aluminum, stainless steel components for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Aluminum Track Ball Base with T-Bolt Attachment - C Size

Product Information
Overview	The RAM^® Track Ball^™ is made up of a C size 1.5" ball molded to a marine-grade aluminum base, a rubber friction washer and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the Track Ball^™ into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball.

Specifications
hardware included	(1) Friction Washer (1) 1/4"-20 x 7/8" T-Bolt
product dimensions	Plate Diameter: 1.25" Thread Depth: .875"
t bolt dimensions	.48" x .95"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum Stainless steel
packaging type	Poly Bag
Weight	0.26 lb

RAM<sup>®</sup> Aluminum Track Ball with T-Bolt Attachment - C Size

Questions about our products? Email us for support.

RAM^® Aluminum Track Ball Base with T-Bolt Attachment - C Size

Part#: RAM-463-TRA1U

UPC: 793442131059

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$22.99

Options

C Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAM^® Track Ball^™ is made up of a C size 1.5" ball molded to a marine-grade aluminum base, a rubber friction washer and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the Track Ball^™ into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball.

Features

Designed for track mounting systems including the RAM^® Tough-Track^™; includes 1.5" C size rubber ball with pin-lock and 1/4-20" threaded hole with T-bolt
Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten
Made of marine-grade aluminum, stainless steel components for durability and reliability in the most demanding environments
Backed by a lifetime warranty
