Overview

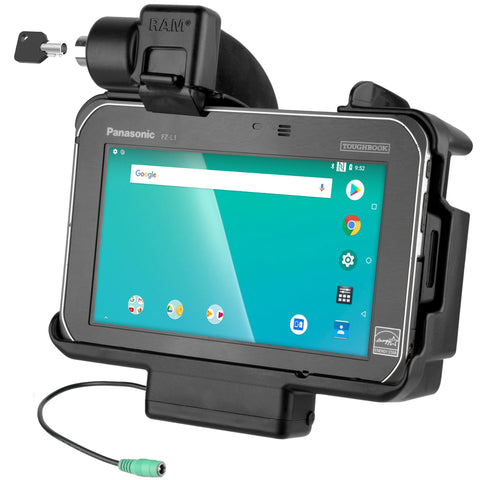

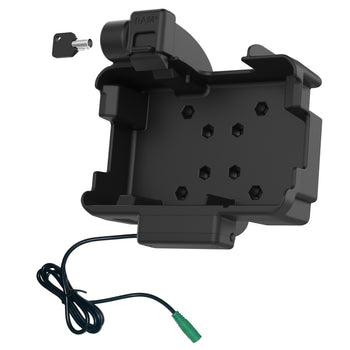

Featuring charging capabilities and a key lock for theft deterrence, the RAM® Vehicle Dock for the Panasonic FZ-S1 & FZ-L1 allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. This dock features cutouts that leave all buttons and ports exposed and easily accessible, while also enabling the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as a scanner, hand strap, and extended battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.
Features
- Key locking powered dock provides charging capabilities for the Panasonic FZ-S1 & FZ-L1 tablet via DC 5.5mm power jack
- When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and extended battery; tablet scanning works while tablet is docked

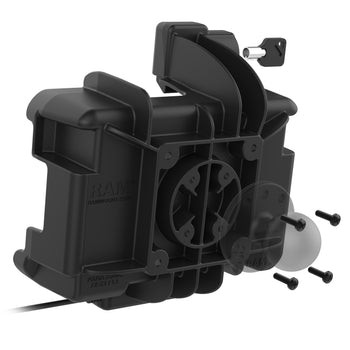

- Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty
hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
4.4-5.4VDC
output voltage:
4.5 - 5.4 VDC
output current:
900mA
input connector:
USB Type A
input cable length:
8.4"
regulatory:
FCC, IC, E-Mark
certifications:
CE, RoHS
Weight:
1.56 lb
