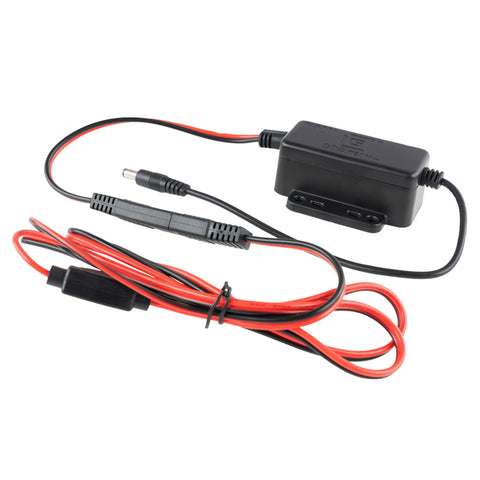

GDS® 20-60VDC Input (12VDC Output) Hardwire Charger with Male DC 5.5mm
Always Protected. Always Connected.®
Part#: RAM-GDS-CHARGE-V9U
UPC: 793442014383
$34.99

Overview

The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 20-60VDC input, making it ideal for forklift mounts and material handling applications. Always Protected. Always Connected.®

Features

  • Hardwire charger includes male 5.5mm barrel connector; 20-60VDC input range, 12VDC output
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

packaging type:

Poly Bag

input voltage:

20-60VDC

output voltage:

12VDC (+/-300mV)

output current:

3.5A max

input connector:

Male 5.5mm OD x 2.5mm ID Barrel Connector

input cable length:

1.2 Meters including 2 Pole Flat Marine Connector

output cable length:

.2 Meters

operating temperature:

-10°C to +70°C

storage temperature:

-40°C to +70°C

regulatory:

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
3A Inline ATC Fuse
18AWG Copper Wire
IP66

certifications:

E-Mark Certification
RCM Certification

Warranty:

3 year warranty

Weight:

0.3 lb
