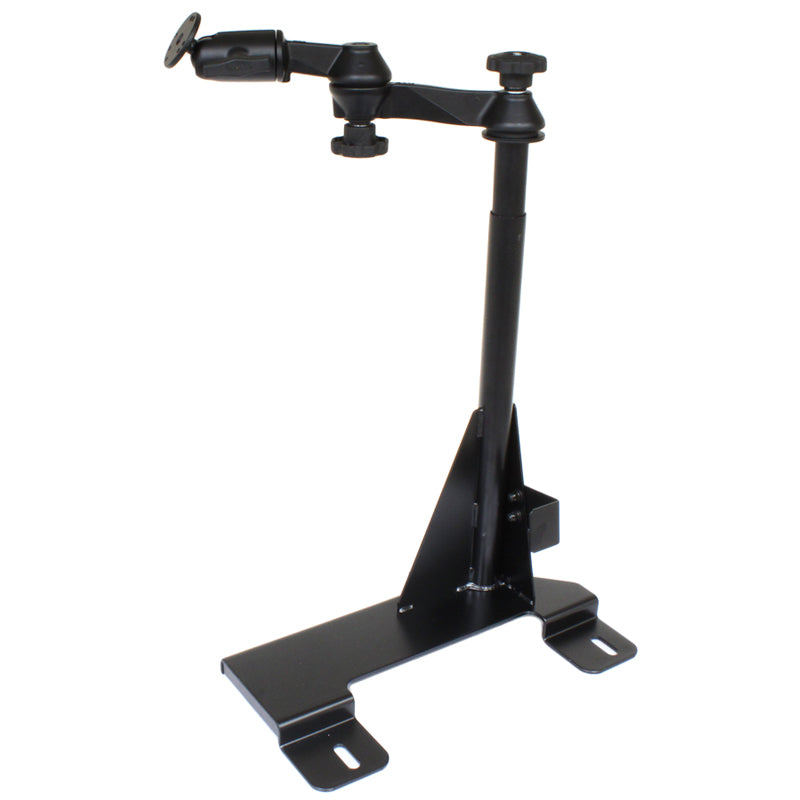

RAM^® No-Drill^™ Vehicle Mount for '95-15 Ford Econoline Van + More
Part #: RAM-VB-119-INC1 UPC: 793442905841 Patented

Product Information

Specifications
hardware included	Assembly Hardware (1) Seat Base Leg (2) 1/4"-20 x 3/4" Hex Bolts (2) 1/4" Flat Washers (2) 1/4" Lock Washers (2) 1/4"-20 Nylock Nuts
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter Seat Bolt Distance: 13.5" center to center
ball size	C Size (1.5")
materials	Powder coated steel Marine-grade aluminum
packaging type	Box
Weight	15.85 lb

RAM<sup>®</sup> No-Drill<sup>™</sup> Vehicle Mount for '95-15 Ford Econoline Van + More

Questions about our products? Email us for support.

Patented

RAM^® No-Drill^™ Vehicle Mount for '95-15 Ford Econoline Van + More

Part#: RAM-VB-119-INC1

UPC: 793442905841

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
