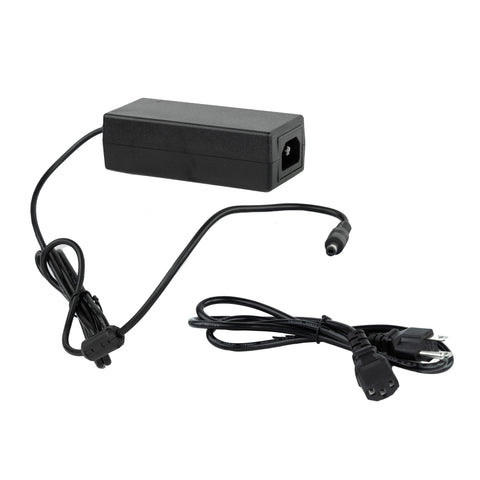

GDS® Power Supply 60W with Male DC 5.5mm
Always Protected. Always Connected.®
Part#: RAM-GDS-CHARGE-ACDC-60
UPC: 793442019999
$33.99

Overview

The GDS® Power Supply 60W with Male DC 5.5mm (RAM-GDS-CHARGE-ACDC-60) is the ideal solution for providing power to any RAM®, GDS® Docks™, or devices that requires 12VDC. This power supply requires a standard US outlet and is not recommended for vehicle solutions, refer to the GDS® Hardwire Chargers for in-vehicle charging solutions. Always Protected. Always Connected.®

Features

  • Power supply features male 5.5mm barrel connector & 12VDC output
  • Compatible with standard US outlet
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

packaging type:

Box

power specifications:

60W Regulated Power Suppy
Input Voltage 90-264VAC
Rated Operating Range 110-240VAC
47-63HZ Input Range
Rated Input Frequency Range 50/60HZ
Peak Inrush Current On Cold Start 30A
12VDC @ 5A (60W) Output

output connector:

Male 5.5mm OD x 2.5mm ID Barrel Connector

regulatory:

FCC, IC, RCM/CTICK, CE, UKCA
Over Current Protection, Over Voltage Protection, Short Circuit Protection

certifications:

UL, RoHS, WEEE, DOE VI, GS

Warranty:

3 year warranty

Weight:

0.91 lb

Print

Questions & Answers

Have a Question?

Ask a Question

  • How Long is the DC Line cord cable?

    It is 1250 mm or 49.2126 inch.
