Overview

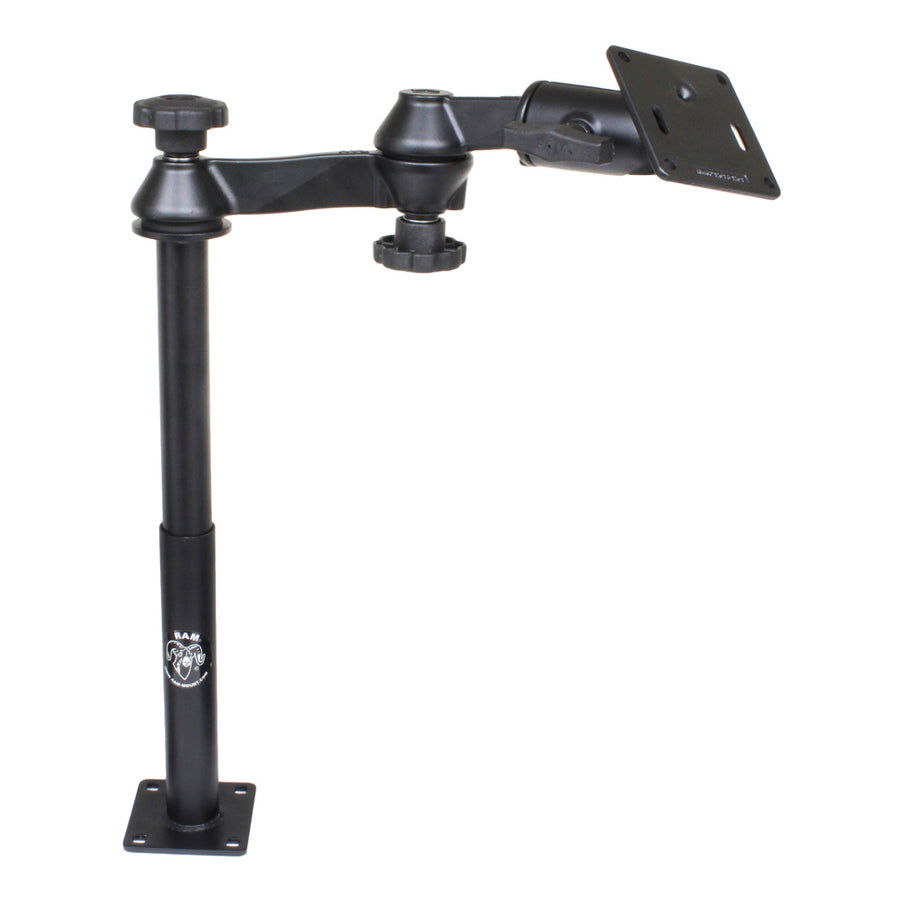

The RAM-VP-SW1-129-2461 consists of a 9" lower female Tele-Pole™, 12" upper male Tele-Pole™, double swing arm and 3.625" square base that contains the VESA hole pattern. The lower female Tele-Pole™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The double swing arm allows you to twist and tilt the viewing angle of your connected electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12". The 3.625" square base includes a 75mm X 75mm VESA hole pattern with 1.5" rubber ball positioned 0.88" from the center of one edge.
hardware included:
Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps
product dimensions:
Minimum Height: 20.3"
Maximum Height: 25.3"
hole pattern:
Tele-Pole: 2.625" x 2.625"
VESA Plate: 75 x 75mm VESA
plate size:
VESA Plate: 3.625" x 3.625"
Lower Pole: 3.5" x 3.5"
ball size:
C Size (1.5")
materials:
Powder coated steel
Marine-grade aluminum
packaging type:
Box
Weight:
7.84 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
