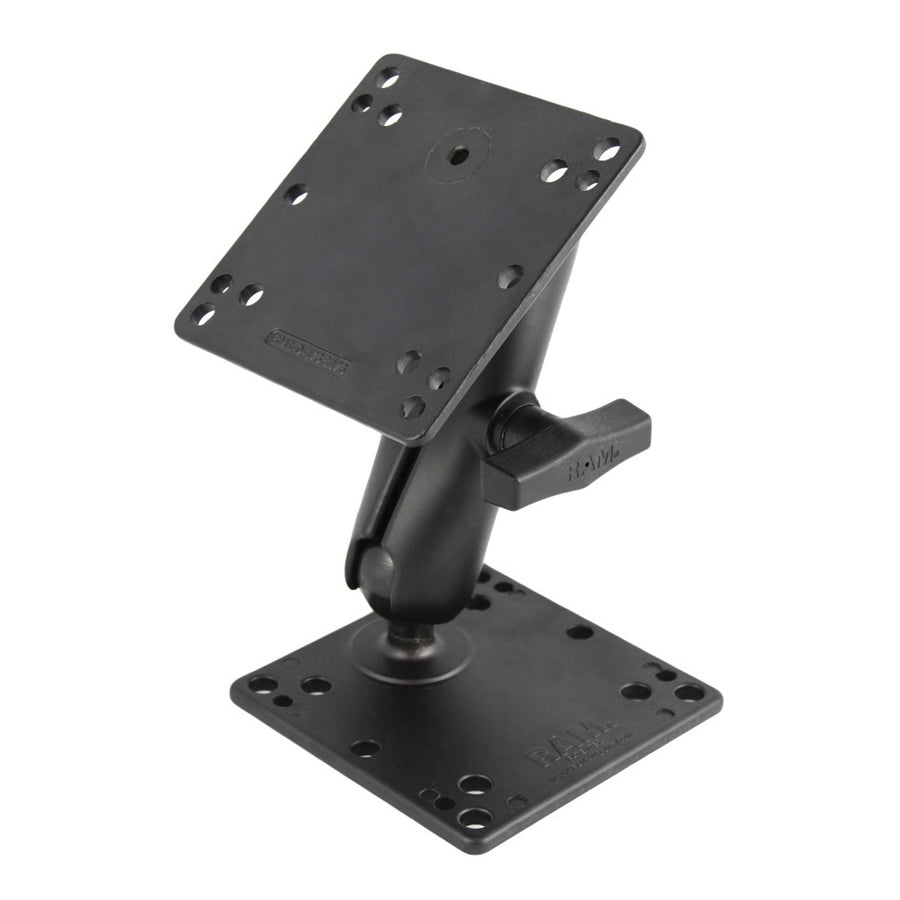

RAM® Double 100x100mm VESA Mount
Part #: RAM-102U-246 UPC: 793442908873

Product Information
Overview	The RAM-102U-246 consists of a medium length double socket arm as well as two 100mmx100mm Vesa plates.

Specifications
hardware included	(4) .312" x .187" Shoulder Washers
product dimensions	Overall Height: 7.35"
socket to socket length	4.66"
hole pattern	See Drawing
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	1.95 lb

RAM® Double 100x100mm VESA Mount

RAM® Double 100x100mm VESA Mount

Part#: RAM-102U-246

UPC: 793442908873

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.
