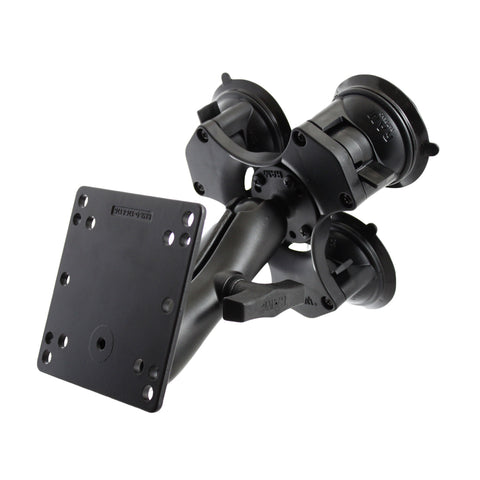

RAM® Twist-Lock™ Triple Suction Mount with 100x100mm VESA Plate - Medium
Part #: RAP-365-101-246U UPC: 793442922831 Patented

Product Information
Overview	Suction cups are one of the most convenient ways to mount portable electronics. RAM has a wide range of suction cups to choose from that have incredible holding power without an incredible price. Easy to afford and easy to use, we offer single, double, and now the RAM Triple suction cup base. This exceptional product allows the freedom to use and move your electronics like never before. Ideally suited to a wide range of agricultural, commercial, and industrial uses, RAM's new triple suction cup base makes it possible to mount your electronics for optimum access, viewing, and safety. You just found your single source provider of the most innovative line of suction cup products anywhere.

Product Information

Overview

Suction cups are one of the most convenient ways to mount portable electronics. RAM has a wide range of suction cups to choose from that have incredible holding power without an incredible price. Easy to afford and easy to use, we offer single, double, and now the RAM Triple suction cup base. This exceptional product allows the freedom to use and move your electronics like never before. Ideally suited to a wide range of agricultural, commercial, and industrial uses, RAM's new triple suction cup base makes it possible to mount your electronics for optimum access, viewing, and safety. You just found your single source provider of the most innovative line of suction cup products anywhere.

Specifications
hardware included	Assembly Hardware (4) .312" x .187" Shoulder Washers
suction size	(3) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length	4.66"
hole pattern	See Drawing
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	2.55 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

RAM® Twist-Lock™ Triple Suction Mount with 100x100mm VESA Plate - Medium

Questions about our products? Email us for support.

Patented

RAM® Twist-Lock™ Triple Suction Mount with 100x100mm VESA Plate - Medium

Part#: RAP-365-101-246U

UPC: 793442922831

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
