RAM® Double Ball Mount with 100x100mm VESA Plate - C Size Medium
Overview

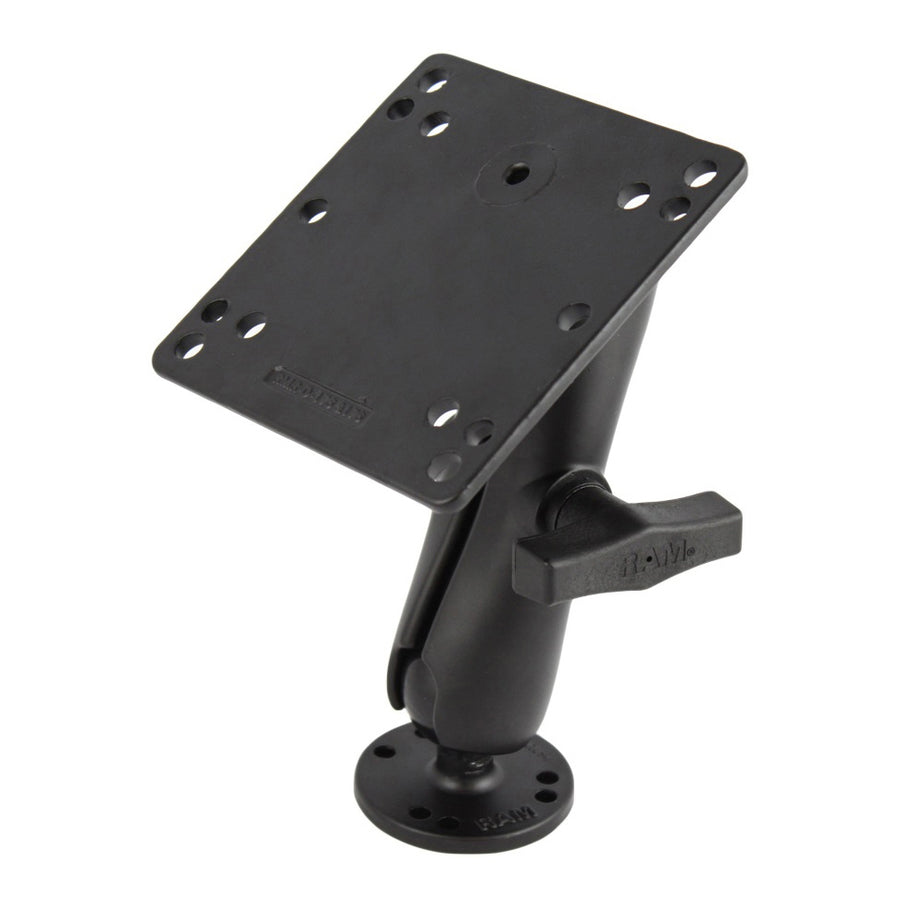

The RAM-101U-246 consists of a 2.5" diameter round base with the universal AMPS hole pattern, 6 inch double socket arm and 4.75" square plate with the VESA hole pattern. The VESA plate contains a 75mm X 75mm and 100mm X 100mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
hardware included:
(4) .312" x .187" Shoulder Washers
product dimensions:
Overall Height: 7.35"
socket to socket length:
4.66"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
1.52 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
What are the 4 shoulder washers used for?
The four included shoulder washers are meant to accommodate smaller screws in case the original holes on the ball plate are too large. These washers will reduce the risk of smaller screw heads stripping through the larger holes, and can be used with any of the holes on the ball plate.
-
Is this made with a B sized ball?
The 100x100mm VESA plates does not come in a B sized ball. Most objects using the VESA plate weigh more than the B sized ball can handle.
