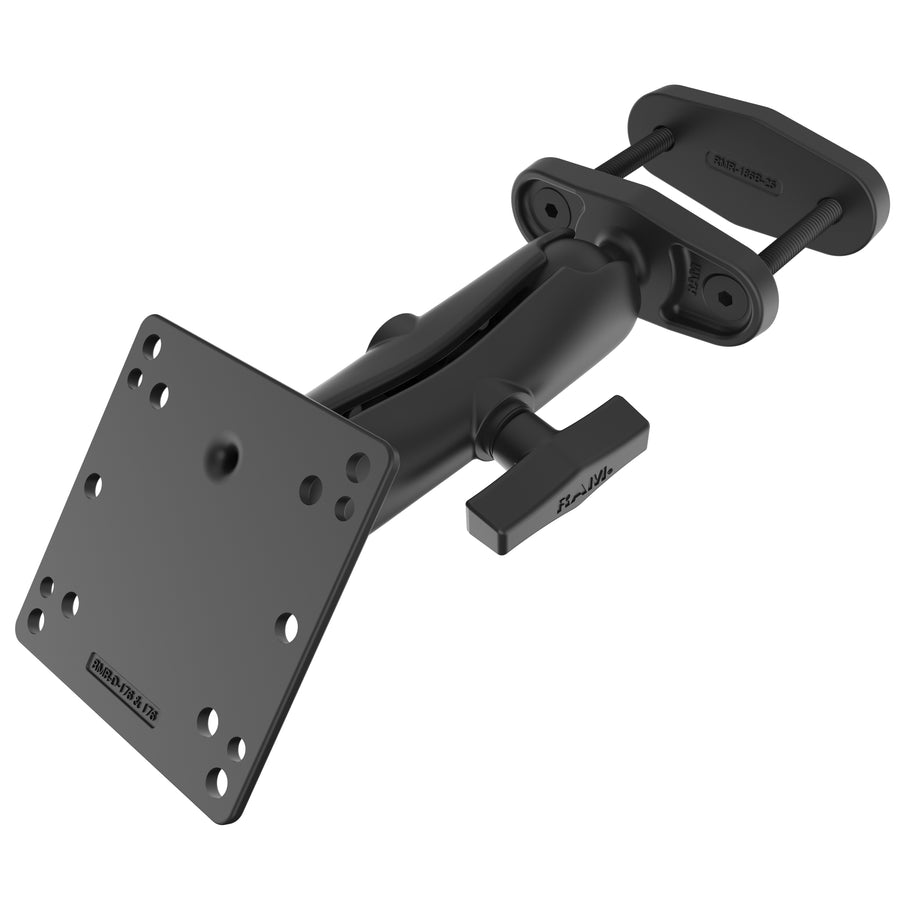

RAM^® 2.5" Square Post Clamp Mount with 100x100mm VESA Plate
Part #: RAM-246-247U-25 UPC: 793442901744

Product Information
Overview	The RAM-246-247U-25 consists of a medium length double socket arms, a VESA plate with 75mm and 100mm VESA hole patterns, as well as a clamping base for square posts up to 2.5" wide.

Specifications
hardware included	(4) .312" x .187" Shoulder Washers (2) 5/16"-18 x 3" Machine Screws (2) 5/16"-18 Nylock Nuts
clamp range	2.5" max width
socket to socket length	4.66"
hole pattern	See Drawing
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	2.0 lb
