Patented

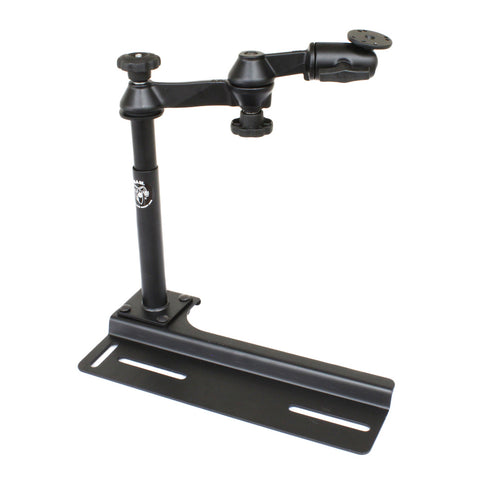

RAM® No-Drill™ Mount for '91-11 Ford Crown Victoria + More

Part#: RAM-VB-106-SW2
UPC: 793442905827

Kit Components

Previous Slide Next Slide
$315.49
RAM® Tough-Tray™ III Spring Loaded Laptop Tray

RAM® Tough-Tray™ III Spring Loaded Laptop Tray

$118.49

hardware included:

Assembly Hardware

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size:

2.5" Diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Powder coated steel
Marine-grade aluminum

packaging type:

Box

Weight:

14.0 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

RAM No-Drill Seat Bases Instructions 106 Series
Upper Tele-Pole Assembly Guide

Documents

On Road Catalog
Transportation Catalog
Q&A
Questions & Answers loading...
RAM® No-Drill™ Mount for '91-11 Ford Crown Victoria + More
$315.49

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size 1" ball
  • C Size — this product 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C — this product1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
