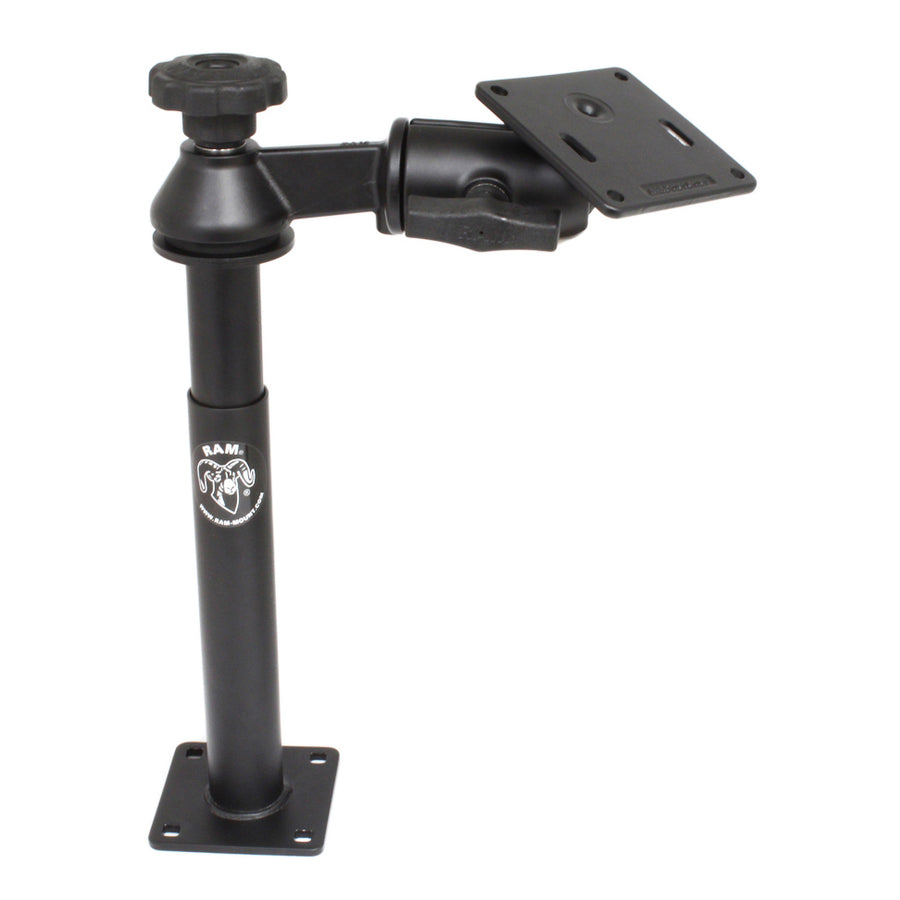

RAM^® Tele-Pole^™ with 8" & 9" Poles, Swing Arm & 75x75mm VESA Plate
Part #: RAM-VP-SW2-89-2461 UPC: 793442924651 Patented

Product Information
Overview	The RAM-VP-SW2-89-2461 consists of a 9" lower female Tele-Pole^™, 8" upper male Tele-Pole^™, single swing arm and 3.625" square base that contains the VESA hole pattern. The lower female Tele-Pole^™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole^™. The height of the Tele-Poles^™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole^™ becomes a rigid support for connecting devices or cradles. The 3.625" square base includes a 75mm X 75mm VESA hole pattern with 1.5" rubber ball positioned 0.88" from the center of one edge.

Product Information

Overview

The RAM-VP-SW2-89-2461 consists of a 9" lower female Tele-Pole^™, 8" upper male Tele-Pole^™, single swing arm and 3.625" square base that contains the VESA hole pattern. The lower female Tele-Pole^™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole^™. The height of the Tele-Poles^™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole^™ becomes a rigid support for connecting devices or cradles. The 3.625" square base includes a 75mm X 75mm VESA hole pattern with 1.5" rubber ball positioned 0.88" from the center of one edge.

Specifications
hardware included	Assembly Hardware (4) 5/16"-18 x 1" Carriage Bolts (4) 5/16"-18 Hex Nuts (4) 5/16" Flat Washers (4) 5/16" Split Lock Washers (4) Rubber Caps
product dimensions	Minimum Height: 16.3" Maximum Height: 21.3"
hole pattern	Tele-Pole: 2.625" x 2.625" VESA Plate: See Drawing
ball size	C Size (1.5")
materials	Powder coated steel Marine-grade aluminum
packaging type	Box
Weight	6.5 lb

RAM<sup>®</sup> Tele-Pole<sup>™</sup> with 8" & 9" Poles, Swing Arm & 75x75mm VESA Plate

Questions about our products? Email us for support.

Patented

RAM^® Tele-Pole^™ with 8" & 9" Poles, Swing Arm & 75x75mm VESA Plate

Part#: RAM-VP-SW2-89-2461

UPC: 793442924651

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
