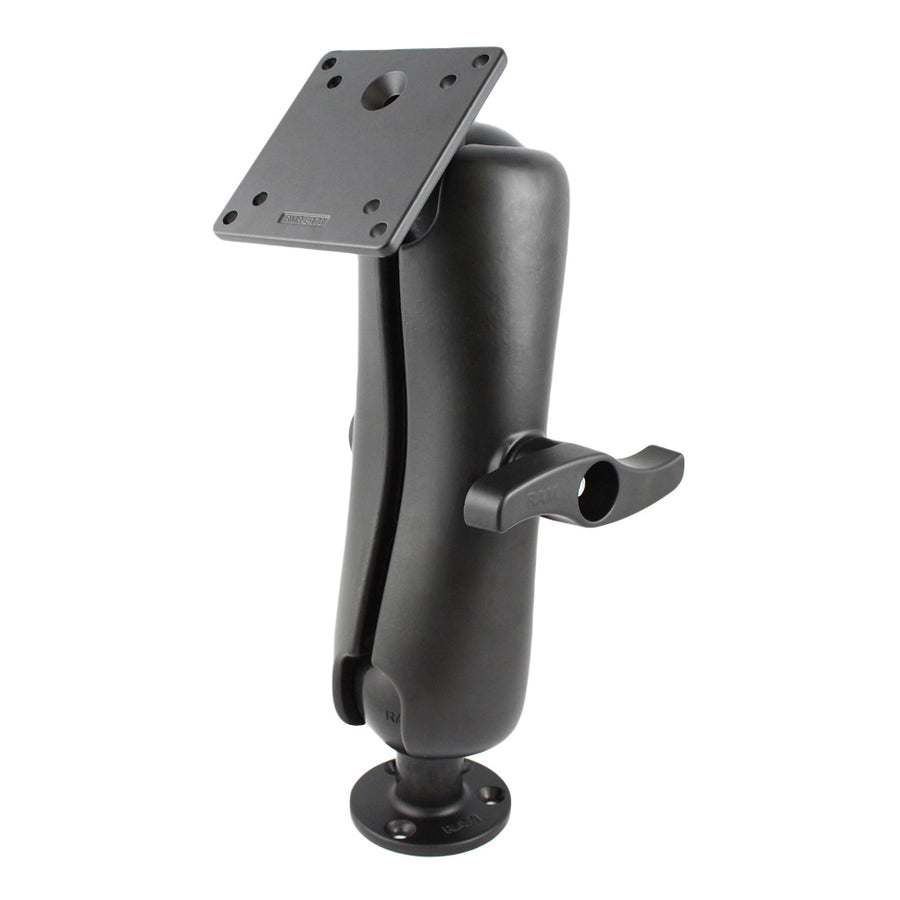

RAM^® Double Ball Mount with 100x100mm VESA Plate - E Size Medium
Part #: RAM-E-101U-246 UPC: 793442903649

Product Information
Overview	The RAM-E-101U-246, heavy duty universal assembly, includes a universal base piece to mount heavy devices to a flat surface and a 4.75" x 4.75" face plate. It is recommended for mounting heavy devices such as monitors and flat screen electronics. Features a hole pattern for 100mm and 75mm VESA standards.

Specifications
hardware included	(4) .312" x .187" Shoulder Washers
socket to socket length	9.875"
hole pattern	See Drawings
ball size	E Size (3.35")
weight capacity	Standard Use: 15 lbs Heavy-Duty Use: 10 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	11.15 lb

RAM<sup>®</sup> Double Ball Mount with 100x100mm VESA Plate - E Size Medium

Questions about our products? Email us for support.

RAM^® Double Ball Mount with 100x100mm VESA Plate - E Size Medium

Part#: RAM-E-101U-246

UPC: 793442903649

E Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
