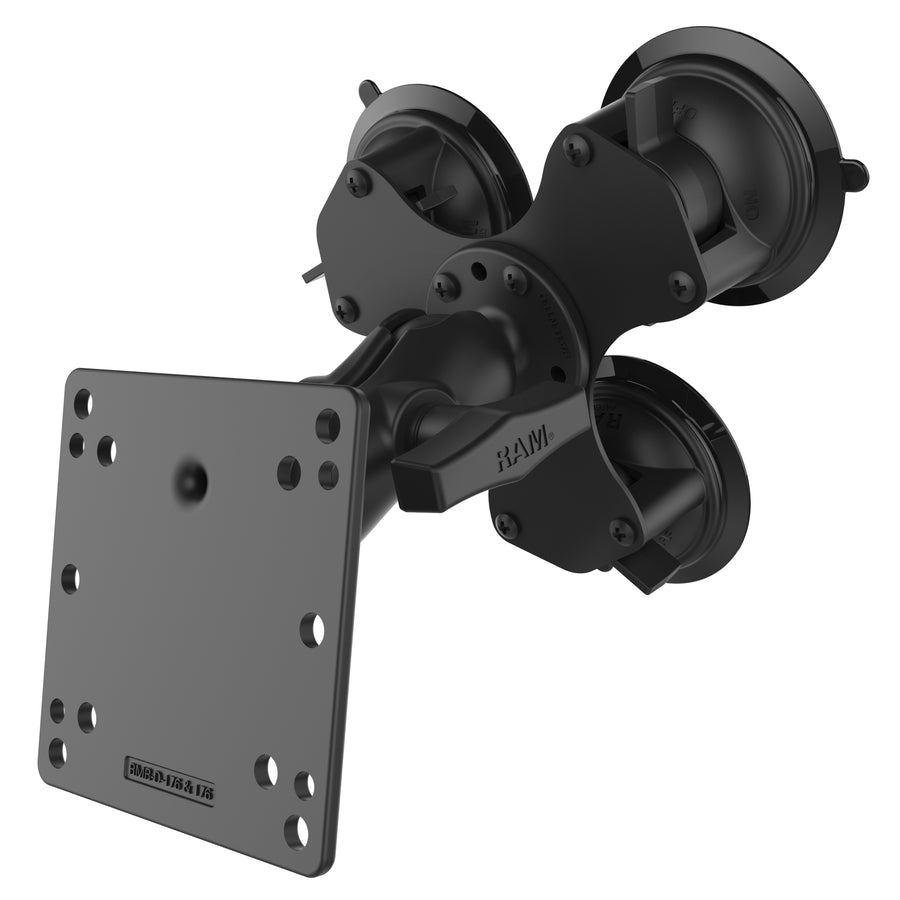

RAM® Twist-Lock™ Triple Suction Mount with 100x100mm VESA Plate - Short
Part #: RAM-101U-B-SPX1 UPC: 793442916137 Patented

Product Information
Overview	The RAM-101U-B-SPX1 consists of a triple 3.3" suction cup locking base, SHORT length double socket arm and 4.75" square plate with the VESA hole pattern. The triple suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The VESA plate contains a 75mm X 75mm and 100mm X 100mm hole pattern. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm.

Product Information

Overview

The RAM-101U-B-SPX1 consists of a triple 3.3" suction cup locking base, SHORT length double socket arm and 4.75" square plate with the VESA hole pattern. The triple suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The VESA plate contains a 75mm X 75mm and 100mm X 100mm hole pattern. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm.

Specifications
hardware included	Assembly Hardware (4) .312" x .187" Shoulder Washers
suction size	(3) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length	2.5"
hole pattern	See Drawing
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum Powder coated steel High strength composite
packaging type	Poly Bag
Weight	2.24 lb

RAM® Twist-Lock™ Triple Suction Mount with 100x100mm VESA Plate - Short

Questions about our products? Email us for support.

Patented

RAM® Twist-Lock™ Triple Suction Mount with 100x100mm VESA Plate - Short

Part#: RAM-101U-B-SPX1

UPC: 793442916137

C Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$120.99
