RAM^® Double Ball Mount with 75x75mm VESA Plate and 100x100mm VESA Plate
Part #: RAM-246-2461U UPC: 793442940644

Product Information

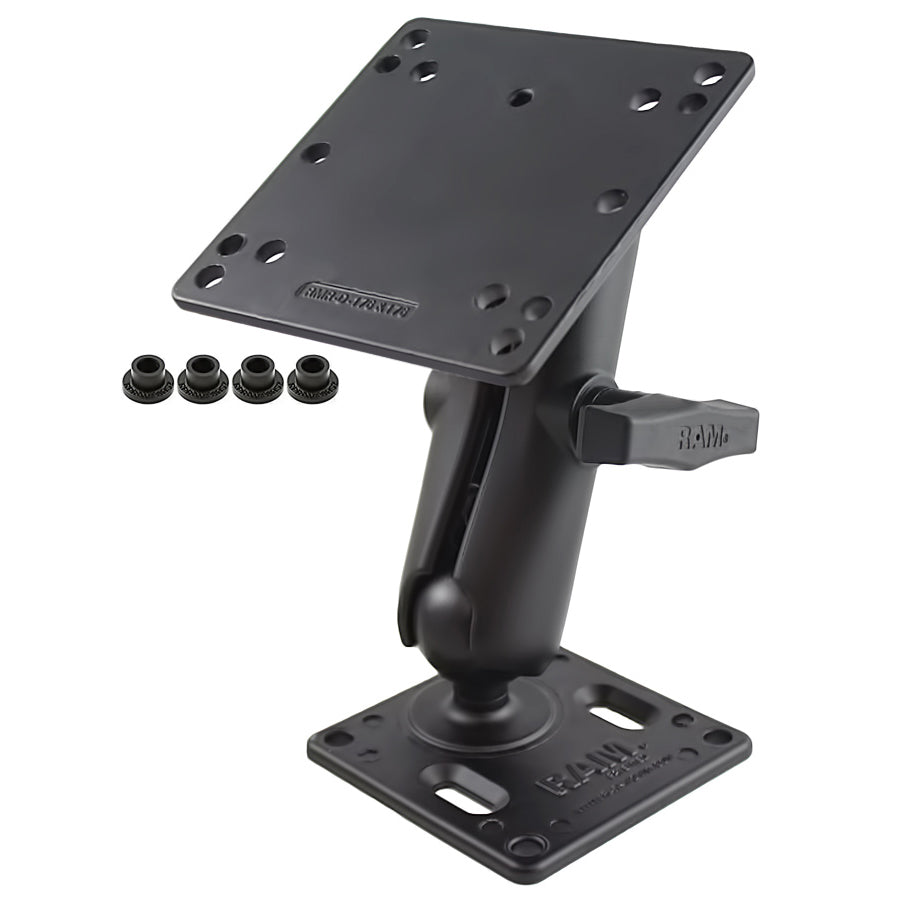

Overview	The RAM-246-2461U consists of a double socket arm, 3.625" square plate and 4.75" square plate. The 3.625" square plate contains a 75mm X 75mm VESA hole pattern. The 4.75" square plate contains a 4x100mm holes and 4x75mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

Specifications
hardware included	(4) .312" x .187" Shoulder Washers
product dimensions	Overall Height: 7.35"
socket to socket length	4.66"
hole pattern	See Drawings
plate size	Large Plate: 4.75" x 4.75" Small Plate: 3.625" x 3.625"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	1.67 lb
