RAM^® 8” Upper Pole and Double Ball 75x75mm VESA Mount
Part #: RAM-VP-SW2F-8-2461 UPC: 793442009075 Patented

Product Information

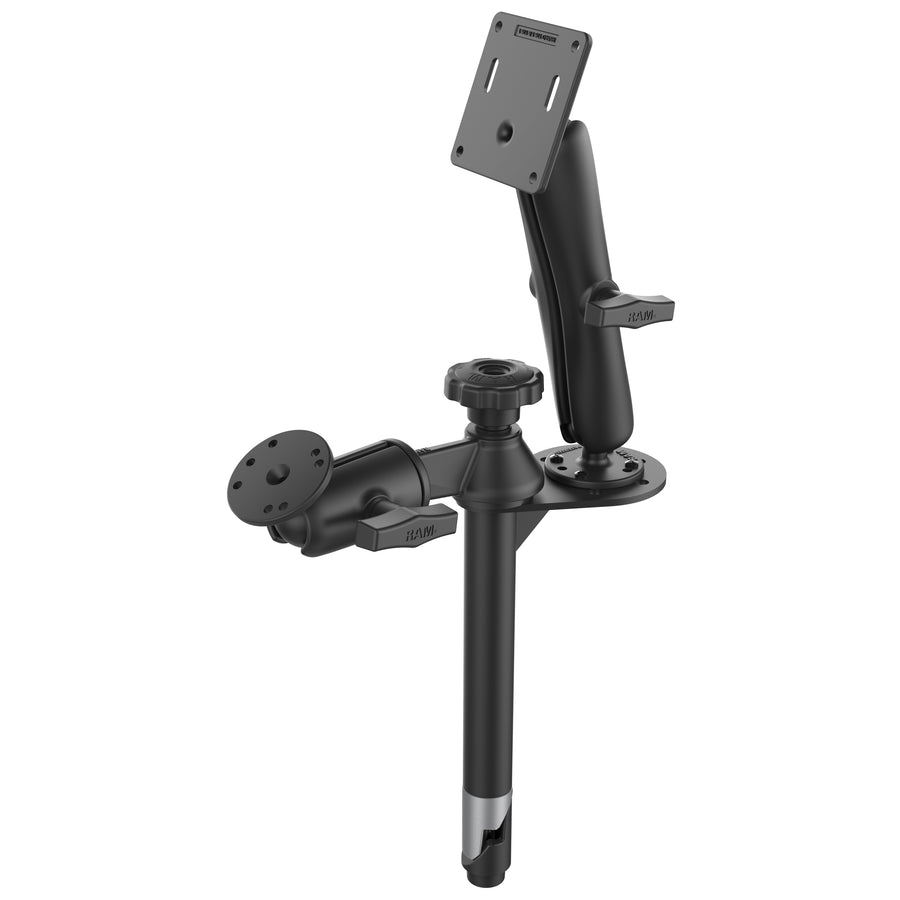

Overview	This in-vehicle GDS^® View^™ monitor and GDS^® Keyboard^™ mount features a RAM^® Tele-Pole^™ 8” upper pole with flange, 6” swing arm, and a long C size double socket arm. Easily connect your GDS^® Keyboard^™ to the swing arm, and attach the GDS^® View^™ monitor to the flange and double socket arm via the included ball bases. With the ability to swing the keyboard out of the way when not in use as well as position the monitor at nearly any angle, ensure your mobile workstation is backed by RAM^® Mounts for strength, durability, and versatility.

Product Information

Overview

This in-vehicle GDS^® View^™ monitor and GDS^® Keyboard^™ mount features a RAM^® Tele-Pole^™ 8” upper pole with flange, 6” swing arm, and a long C size double socket arm. Easily connect your GDS^® Keyboard^™ to the swing arm, and attach the GDS^® View^™ monitor to the flange and double socket arm via the included ball bases. With the ability to swing the keyboard out of the way when not in use as well as position the monitor at nearly any angle, ensure your mobile workstation is backed by RAM^® Mounts for strength, durability, and versatility.

Specifications
hardware included	Assembly Hardware
hole pattern	Tele-Pole: 2.625" x 2.625" VESA Plate: See Drawing
ball size	C Size (1.5")
materials	Powder coated steel Marine-grade aluminum
packaging type	Box
Weight	7.19 lb

RAM<sup>®</sup> 8” Upper Pole and Double Ball 75x75mm VESA Mount

Questions about our products? Email us for support.

Patented

RAM^® 8” Upper Pole and Double Ball 75x75mm VESA Mount

Part#: RAM-VP-SW2F-8-2461

UPC: 793442009075

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
