RAM® Power + Data Dock for Panasonic FZ-S1 & FZ-L1
$161.99
Power + Single USB-A Peripheral
Features
- Spring-loaded powered dock for Panasonic FZ-S1 & FZ-L1 tablet via DC 5.5mm power jack and USB Type A connector for adding a peripheral
- When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and extended battery; tablet scanning works while tablet is docked
- Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty

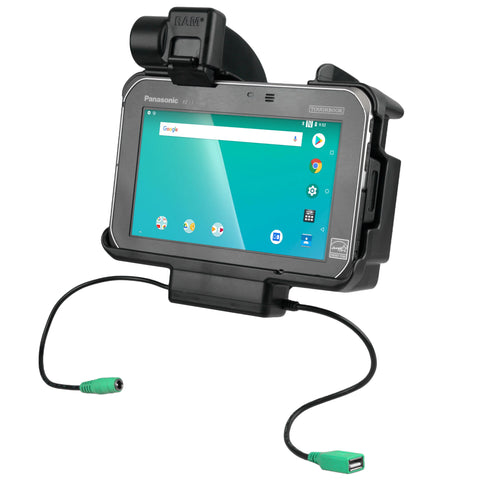

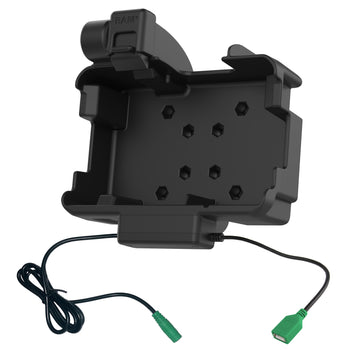

Featuring data and charging capabilities, the RAM® Vehicle Dock for Panasonic FZ-S1 & FZ-L1 allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type-A cable. This dock features cutouts that leave all buttons and ports exposed and easily accessible, while also enabling the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as a scanner, hand strap, and extended battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.
RAM® Power + Data Dock for Panasonic FZ-S1 & FZ-L1
Overview
Featuring data and charging capabilities, the RAM® Vehicle Dock for Panasonic FZ-S1 & FZ-L1 allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type-A cable. This dock features cutouts that leave all buttons and ports exposed and easily accessible, while also enabling the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as a scanner, hand strap, and extended battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.

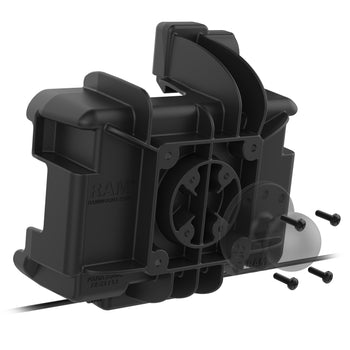

hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
hole pattern
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
materials
High strength composite
packaging type
Poly Bag
input voltage
4.4-5.4VDC
output voltage
4.5 - 5.4 VDC
output current
900mA
input connector
USB Type A
input cable length
8.4"
output connector
USB 1.1 Type A
output cable length
8.4"
peripheral output
500mAh
transfer speed
12Mbps
regulatory
FCC, IC, E-Mark
certifications
CE, RoHS
Weight
1.27 lb
