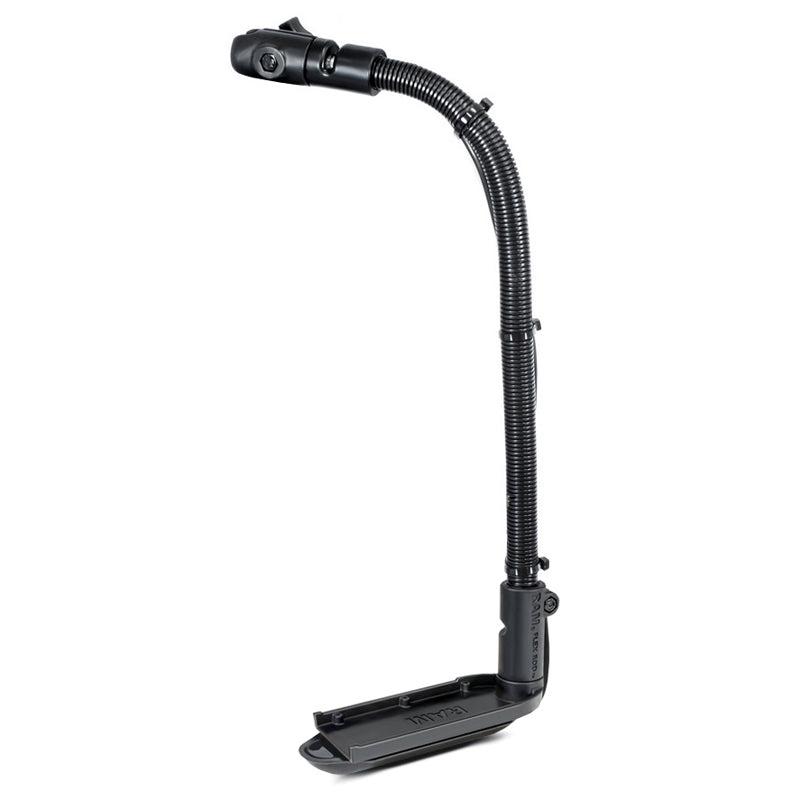

RAM^® Transducer Mount for Lowrance StructureScan with Socket Arm
Part #: RAM-B-316-18-TRA3-NB UPC: 793442942471 Patented

Product Information
Overview	Kayak fishing is all about adaptability. RAM Mount offers the widest selection of kayak fishing accessories to adapt to a wide range of fishing scenarios. This transducer mount enables quick, effective deployment and retrieval of your Lowrance StructureScan LSS transducer, while protecting it from damage. Perfect for kayak applications, the included rigid mounting arm can quickly be retrieved if you enter shallow water or when beaching your kayak. With little effort, the transducer mount can quickly be moved to a different kayak with an existing 1" RAM ball. Add a RAM ball mount for the Lowrance HDS-7 Fishfinder, and you have a complete mounting solution for your next fishing adventure. Compatible transducers include the Lowrance StructureScan LSS-2 and the Lowrance StructureScan LSS-1.

Product Information

Overview

Kayak fishing is all about adaptability. RAM Mount offers the widest selection of kayak fishing accessories to adapt to a wide range of fishing scenarios. This transducer mount enables quick, effective deployment and retrieval of your Lowrance StructureScan LSS transducer, while protecting it from damage. Perfect for kayak applications, the included rigid mounting arm can quickly be retrieved if you enter shallow water or when beaching your kayak. With little effort, the transducer mount can quickly be moved to a different kayak with an existing 1" RAM ball. Add a RAM ball mount for the Lowrance HDS-7 Fishfinder, and you have a complete mounting solution for your next fishing adventure. Compatible transducers include the Lowrance StructureScan LSS-2 and the Lowrance StructureScan LSS-1.

Specifications
hardware included	Assembly Hardware (6) #6-32 x 3/8" Sheet Metal Screws
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Box
Weight	0.95 lb

RAM<sup>®</sup> Transducer Mount for Lowrance StructureScan with Socket Arm

Questions about our products? Email us for support.

Patented

RAM^® Transducer Mount for Lowrance StructureScan with Socket Arm

Part#: RAM-B-316-18-TRA3-NB

UPC: 793442942471

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$69.49
