RAM® Ball Base with 1.5" x 2.5" 4-Hole Pattern - B Size

rammount.com
1-800-497-7479
sales@rammount.com

RAM^® Ball Base with 1.5" x 2.5" 4-Hole Pattern - B Size
Part #: RAM-B-202U-23 UPC: 793442909597 Features 2" x 3" rectangular plate containing 4-Hole 1.5" x 2.5" center to center hole pattern Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Ball Base with 1.5" x 2.5" 4-Hole Pattern - B Size

Part #: RAM-B-202U-23 UPC: 793442909597

Features

2" x 3" rectangular plate containing 4-Hole 1.5" x 2.5" center to center hole pattern
Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Product Information

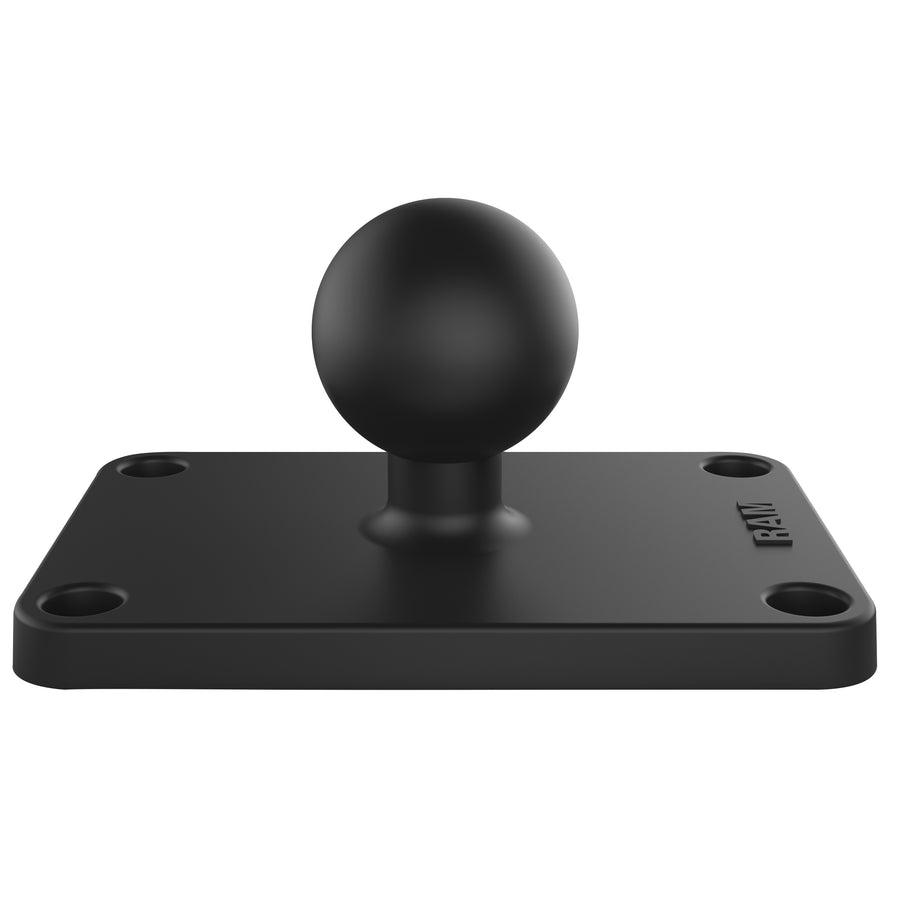

Overview	The RAM-B-202U-23 contains a 1" diameter rubber ball connected to a rectangular plate with a 4-hole pattern of 1.5" x 2.5" center to center.

Specifications
hole pattern	1.5" x 2.5"
plate size	2" x 3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.18 lb

RAM<sup>®</sup> Ball Base with 1.5" x 2.5" 4-Hole Pattern - B Size

Questions about our products? Email us for support.

RAM^® Ball Base with 1.5" x 2.5" 4-Hole Pattern - B Size

Part#: RAM-B-202U-23

UPC: 793442909597

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$23.49

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAM-B-202U-23 contains a 1" diameter rubber ball connected to a rectangular plate with a 4-hole pattern of 1.5" x 2.5" center to center.

Features

2" x 3" rectangular plate containing 4-Hole 1.5" x 2.5" center to center hole pattern
Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hole pattern:

1.5" x 2.5"

plate size:

2" x 3"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.18 lb

Print

Questions & Answers

Have a Question?

Ask a Question

Does this SKU include the hardware needed to bolt it to a flat surface?

No, the hardware required to install this mount is not included. Because these are mounted to such a wide variety of materials and applications we do not know what hardware to provide. The best resource for that type of information is usually a local hardware store or the manufacturer of the vehicle you are mounting to.
