RAM^® Flex Adhesive Ball Base
Part #: RAP-B-378U UPC: 793442935053 Features Flex adhesive ball base provides a strong mounting surface in a wide variety of use cases, such as a vehicle dash Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability Made of high-strength composites for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Flex Adhesive Ball Base

Part #: RAP-B-378U UPC: 793442935053

Features

Flex adhesive ball base provides a strong mounting surface in a wide variety of use cases, such as a vehicle dash
Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Product Information

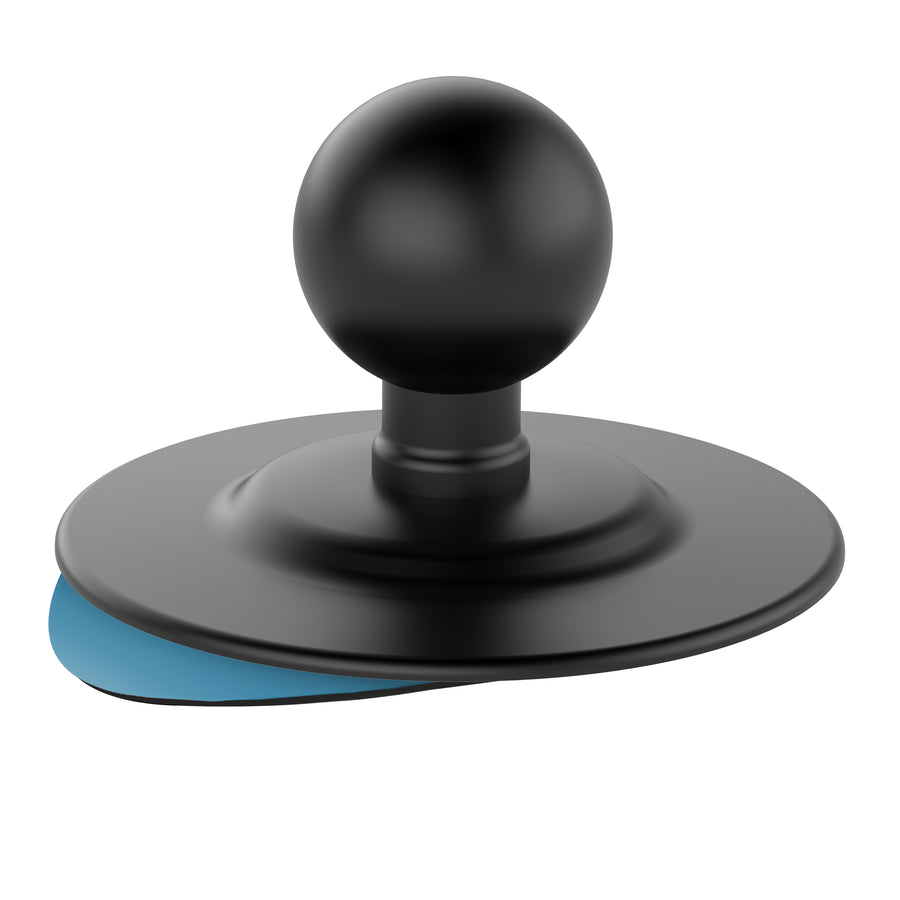

Overview	The RAP-B-378U consists of a 2.5" composite B size ball base, double-sided adhesive PSA stick pad, and sealed alcohol prep pad. This base will attach to all RAM^® B size double socket arms, allowing you to connect a compatible device holder.

Specifications
hardware included	(1) 2.5" Double Adhesive Pad (1) Alcohol Prep Pad
plate size	2.5" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.1 lb

Video Thumbnail — YouTube video thumbnail for 6TjoFzPAjmM

Questions about our products? Email us for support.

RAM^® Flex Adhesive Ball Base

Part#: RAP-B-378U

UPC: 793442935053

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$16.99

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

The RAP-B-378U consists of a 2.5" composite B size ball base, double-sided adhesive PSA stick pad, and sealed alcohol prep pad. This base will attach to all RAM^® B size double socket arms, allowing you to connect a compatible device holder.

Features

Flex adhesive ball base provides a strong mounting surface in a wide variety of use cases, such as a vehicle dash
Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

(1) 2.5" Double Adhesive Pad
(1) Alcohol Prep Pad

plate size:

2.5" Diameter

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.1 lb

Print

Instructions

Install Guide

Documents

On Road Catalog

Questions & Answers

Have a Question?

Ask a Question

Does this come with a larger ball?

No, but you can attach one of our RAM-202U C size round plate with ball to our Bond A Base to create a similar base mount.
The mount didn’t have any instructions for mounting this, what is the tube of glue and alcohol prep pad for? Are there preferred mounting surfaces? Are there preferred mounting angles (should the pad be in shear or compression?).

On this product page if you click Resources and see the INSTALL GUIDE. Flex adhesive ball base provides a strong mounting surface in a wide variety of use cases, such as a vehicle dash. If you got the X-Grip with your order the tube of glue is to put in the caps before you put on the medal legs. This is to give you a longer lasting hold.
How do you remove the base from one location and move to another surface? Is the adhesive reusable?

The adhesive is difficult to remove and reuse, please see RAM-202PSAU for additional 3M adhesive.
Do you have an option where a threaded ball can be screwed into a streamlined base such as this? I'd love this for my paddleboard, but it would work so much better if the ball head could be removed from a permanently mounted base...

The Bond A Base adhesive base mount allows you to use either a drill down base or a track ball as the attachment point. The RAP-398-BLK-202U is the version that uses a drill ball base like the RAM-202U, while the RAP-398-BLK-TRACK-AU is intended for use with one of our track balls like the RAP-354U-TRA1 or the RAM-463-TRA1U, both of which are removeable.
Will this work on a textured vertical surface of a dash (versus a horizontal dash) to hold an phone?

Yes, the RAP-B-378U is a good choice for a vertical mount in places where a drill down base isn't an option.
Will this stick and hold well to the plastic dash in a utv

Yes, the RAM-B-378U is a good option for textured or porous surfaces that a suction cup would not be suitable for.
In order to select the correct glue, I need to know what kind of plastic the base is made of.

The RAP-B-378U comes with a double sided adhesive pad from 3M, no additional glue or other adhesives are required.
The adhesive pad has yellow paper on one side and black clear plastic on the other. Which side should adhere to the ball base and which to the surface? Or does it matter?

No, it does not matter which side you use to attach to the Flex Adhesive Ball Base or the mounting surface. The adhesive is the same on both sides of the disk.
Is this removable without damaging the dash?

Yes, the Flex Adhesive bases like the RAP-B-378U can be removed by using a hair dryer or heat gun on a low setting and applying hot, moving air to the base itself. The adhesive will turn more tacky than sticky and you will be able to slowly and carefully peel the base off of the mounting surface.
