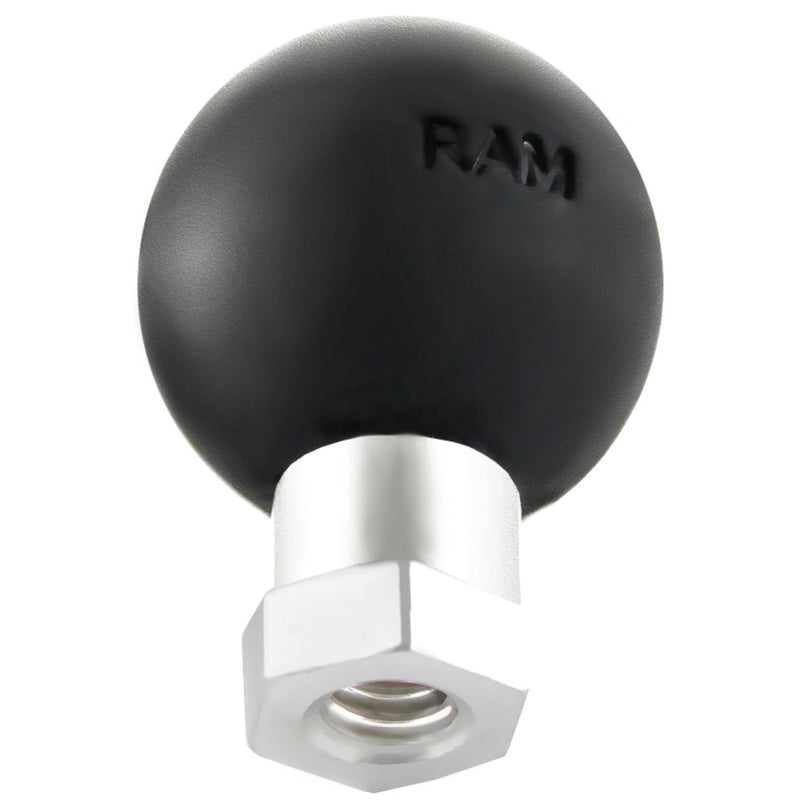

RAM^® Ball Adapter with 1/4" - 20" Threaded Hole and Hex Post - B Size
Part #: RAM-B-337U UPC: 793442904578 Features Universal threaded hole solution for a variety of use cases Included B size 1" RAM^® rubber balls allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments Backed by a lifetime warranty

RAM^® Ball Adapter with 1/4" - 20" Threaded Hole and Hex Post - B Size

Part #: RAM-B-337U UPC: 793442904578

Features

Universal threaded hole solution for a variety of use cases
Included B size 1" RAM^® rubber balls allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty

Product Information
Overview	The RAM-B-337U consists of a 1/4"-20 female thread hex hole connected to a B size 1" rubber ball, allowing you to take advantage of the RAM^® ball and socket system in a variety of applications.

Specifications
thread pitch	1/4"-20 x 5/8" (female)
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.06 lb

RAM<sup>®</sup> Ball Adapter with 1/4" - 20" Threaded Hole and Hex Post - B Size

Questions about our products? Email us for support.

RAM^® Ball Adapter with 1/4" - 20" Threaded Hole and Hex Post - B Size

Part#: RAM-B-337U

UPC: 793442904578

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$9.99

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAM-B-337U consists of a 1/4"-20 female thread hex hole connected to a B size 1" rubber ball, allowing you to take advantage of the RAM^® ball and socket system in a variety of applications.

Features

Universal threaded hole solution for a variety of use cases
Included B size 1" RAM^® rubber balls allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty

thread pitch:

1/4"-20 x 5/8" (female)

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.06 lb

Print

Questions & Answers

Have a Question?

Ask a Question

Can this ball be mounted to the top of a camera tripod?

Yes, this ball will be compatible with any standard camera tripod.
How deep is the female socket? I need to make sure I order the correct length bolt for my application.

It has a .75 HOLE DEPTH
Can I please have the dimensions or a PDF drawing for this RAM-B-337U

Yes, it is a 1" ball ontop of a Hex post. Overall length is 1.51" Hex Width is .437" and from the bottom of the ball to the end of the Hex Post is about .5"
