RAM^® Strap Hose Clamp Ball Base 1" - 2.1"
Part #: RAM-B-108BU UPC: 793442110818 Features Saddle-shaped clamp mount ideal for rails ranging from 1" to 2.1" in diameter Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Strap Hose Clamp Ball Base 1" - 2.1"

Part #: RAM-B-108BU UPC: 793442110818

Features

Saddle-shaped clamp mount ideal for rails ranging from 1" to 2.1" in diameter
Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Strap Hose Clamp Ball Base 1

Product Information

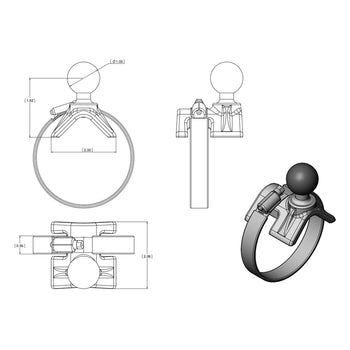

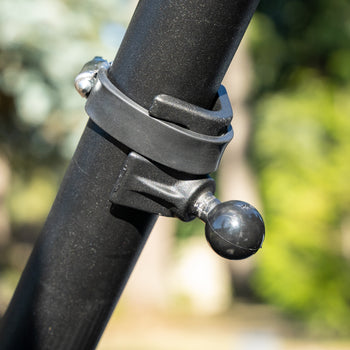

Overview	The RAM-B-108BU consists of a B size 1" rubber ball connected at a right angle to a V-shaped base, and accommodates rails from 1" to 2.1" in diameter. To mount the RAM-B-108BU base, place the saddle-shaped plate on the rail and then wrap the metal clamp strap around the rail and plate. Tighten the knob on the metal strap with a screwdriver until it has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for Beechcraft airplanes with a “throw over yoke."

Product Information

Overview

The RAM-B-108BU consists of a B size 1" rubber ball connected at a right angle to a V-shaped base, and accommodates rails from 1" to 2.1" in diameter. To mount the RAM-B-108BU base, place the saddle-shaped plate on the rail and then wrap the metal clamp strap around the rail and plate. Tighten the knob on the metal strap with a screwdriver until it has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for Beechcraft airplanes with a “throw over yoke."

Specifications

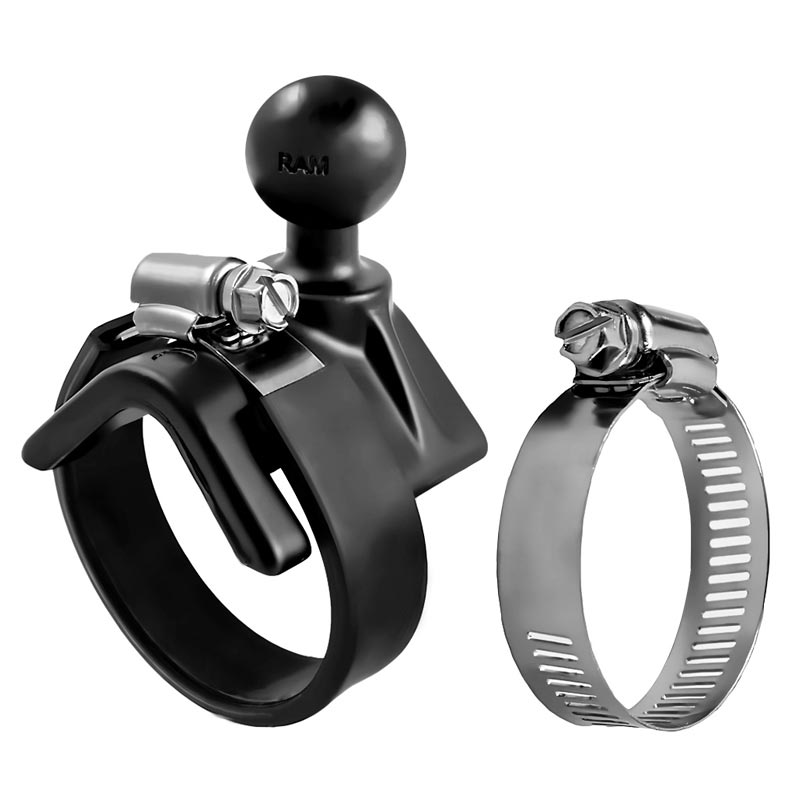

hardware included	(1) #20 Worm Drive Strap Clamp (1) #28 Worm Drive Strap Clamp (1) 6" Rubber Strip
clamp range	1" - 2.1" diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.3 lb

RAM<sup>®</sup> Strap Hose Clamp Ball Base 1" - 2.1"

Questions about our products? Email us for support.

RAM^® Strap Hose Clamp Ball Base 1" - 2.1"

Part#: RAM-B-108BU

UPC: 793442110818

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$23.99

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Saddle-shaped clamp mount ideal for rails ranging from 1" to 2.1" in diameter
Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip

clamp range:

1" - 2.1" diameter

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.3 lb

Print

Documents

Off Road Catalog

Questions & Answers

Have a Question?

Ask a Question

Will this fit my yoke?

This is commonly used with the Beechcraft throw-over yokes, but as long as the yoke on your aircraft is between 1" and 2.1" this will be compatible
Can I fit a C size ball to this. (I bought this B size but my mount is slipping so I think I need to go up a ball size)

No, the B size ball included as part of a RAM-B-108BU is injection molded onto the post of that mount and cannot be changed. The RAM-108BU is a comparable mount that has the 1.5" diameter C size ball.
