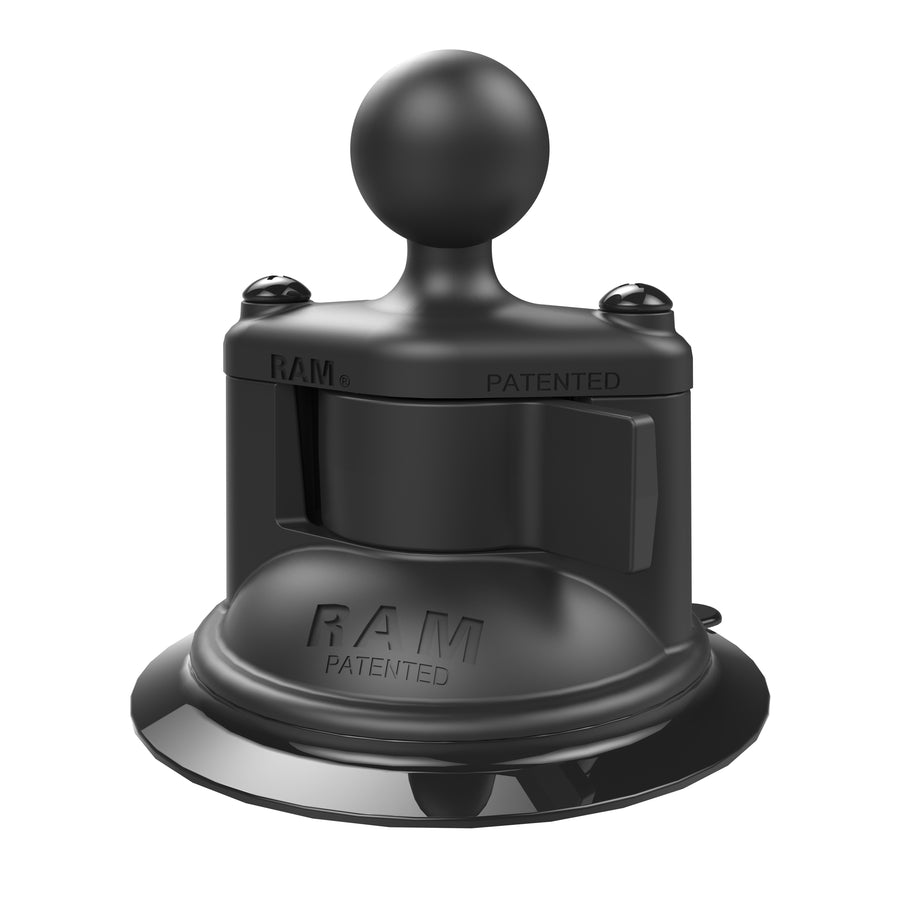

RAM^® Twist-Lock^™ Composite Suction Cup Base with Ball
Part #: RAP-B-224-1U UPC: 793442904721 Patented Features RAM^® Twist-Lock^™ suction cup base is ideal for vehicle windshields and other nonporous surfaces Compatible with RAM^® Mounts diamond ball bases; ball and socket technology allows for near-infinite adjustability Made of high-strength composites for durability and reliability in the most demanding environments Backed by a lifetime warranty*

RAM^® Twist-Lock^™ Composite Suction Cup Base with Ball

Part #: RAP-B-224-1U UPC: 793442904721 Patented

Features

RAM^® Twist-Lock^™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
Compatible with RAM^® Mounts diamond ball bases; ball and socket technology allows for near-infinite adjustability
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty*

RAM<sup>®</sup> Twist-Lock<sup>™</sup> Composite Suction Cup Base with Ball

Product Information
Overview	The RAP-B-224-1U suction cup base consists of a 3.3" diameter RAM^® Twist-Lock^™ suction cup that is compatible with the RAM-B-238 or RAP-B-238 diamond ball base. The RAM^® Twist-Lock^™ suction cup base is a fan favorite for use on vehicle windshields, and provides an extra strong hold on any smooth, nonporous surface.

Specifications
hardware included	Assembly Hardware
suction size	3.3" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.24 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.

Questions about our products? Email us for support.

Patented

RAM^® Twist-Lock^™ Composite Suction Cup Base with Ball

Part#: RAP-B-224-1U

UPC: 793442904721

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$21.49

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAP-B-224-1U suction cup base consists of a 3.3" diameter RAM^® Twist-Lock^™ suction cup that is compatible with the RAM-B-238 or RAP-B-238 diamond ball base. The RAM^® Twist-Lock^™ suction cup base is a fan favorite for use on vehicle windshields, and provides an extra strong hold on any smooth, nonporous surface.

Features

RAM^® Twist-Lock^™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
Compatible with RAM^® Mounts diamond ball bases; ball and socket technology allows for near-infinite adjustability
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty*

hardware included:

Assembly Hardware

suction size:

3.3" Diameter

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.24 lb

Additional Information:

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.

Print

Instructions

RAM^® Twist-Lock^™ Suction Cup Assembly Guide

Questions & Answers

Have a Question?

Ask a Question

What is the difference between RAM-B-224-1U and RAP-B-224-1U besides price?

The M in the part number indicates the ball is made with our Marine-grade aluminum. The P in the part number indicates High strength composite.
How high is the center of the ball from the suction cup surface its mounted to?

The height of the RAP-B-238 from the mounting surface (in this case the Twist Lock Suction Cup Base) to the center of the ball is 1.19".
