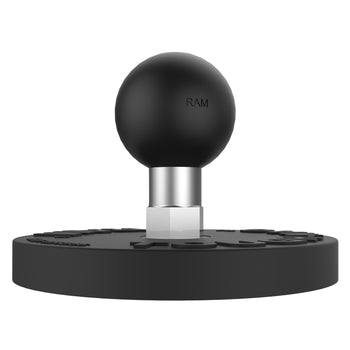

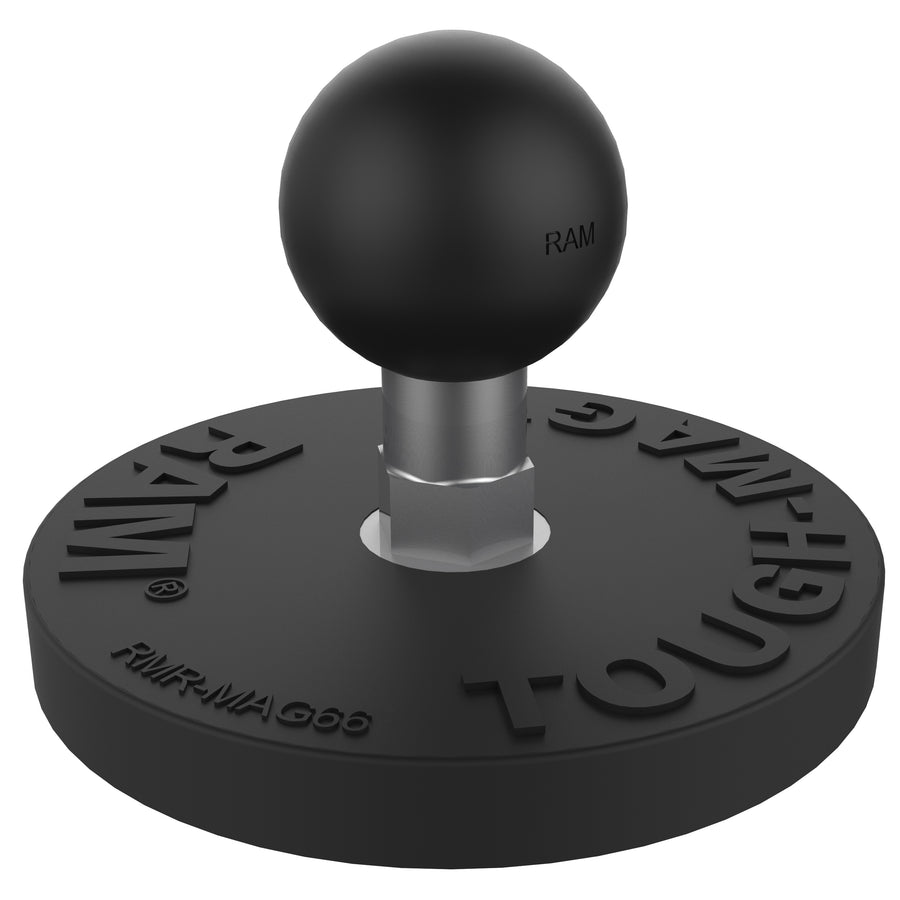

RAM^® Tough-Mag^™ 66MM Diameter Magnetic Ball Base
Part #: RAM-B-MAG66U UPC: 793442008917

Product Information
Overview	Looking to mount to a metal surface? The RAM^® Tough-Mag^™ 66mm diameter base is the powerful and durable solution you've been searching for. With a B size ball screwed into a ¼-20” threaded post, simply attach a compatible double socket arm and your desired RAM^® device holder. This base features an industrial-strength N35 grade magnet and rubber coating that protects the metal surface you're attaching the RAM^® Tough-Mag^™ to.

Product Information

Overview

Looking to mount to a metal surface? The RAM^® Tough-Mag^™ 66mm diameter base is the powerful and durable solution you've been searching for. With a B size ball screwed into a ¼-20” threaded post, simply attach a compatible double socket arm and your desired RAM^® device holder. This base features an industrial-strength N35 grade magnet and rubber coating that protects the metal surface you're attaching the RAM^® Tough-Mag^™ to.

Specifications
product dimensions	Overall Height: 2"
plate size	2.6" Diameter
ball size	B Size (1")

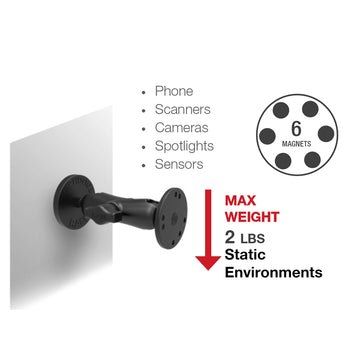

weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum Rubber
packaging type	Poly Bag
Weight	0.71 lb

RAM<sup>®</sup> Tough-Mag<sup>™</sup> 66MM Diameter Ball Base

Questions about our products? Email us for support.

RAM^® Tough-Mag^™ 66MM Diameter Magnetic Ball Base

Part#: RAM-B-MAG66U

UPC: 793442008917

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$36.99

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

product dimensions:

Overall Height: 2"

plate size:

2.6" Diameter

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
Rubber

packaging type:

Poly Bag

Weight:

0.71 lb

Print

Documents

Sell Sheet

On Road Catalog

Material Handling Catalog

Questions & Answers

Have a Question?

Ask a Question

How thick is the magnetic base?

It is about 7.90MM thick
Does this come with a metal plate and adhesive to use on a plastic dash?

The RAM-B-MAG66U does not come with the metal adhesive plate RAM-343-PU.
