RAM^® Motorcycle Handlebar Clamp Base with M8 Bolts

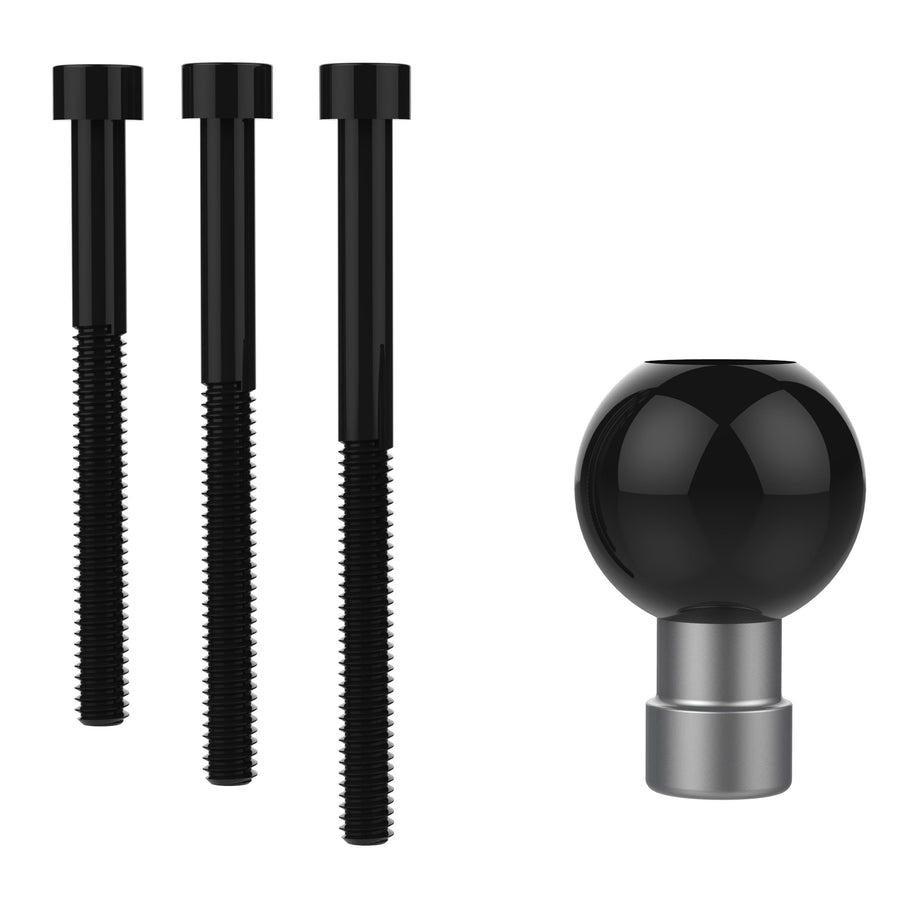

Part #: RAM-B-367U UPC: 793442924903 Features Includes rubber ball, M8 x 55 bolt, M8 x 60 bolt, M8 x 65 bolt (1.25 thread pitch) Compatible with any motorcycle M8 threaded bolt; ball base allows for connection to any B size RAM^® double socket arm Made of marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

Product Information
Overview	For M8 handlebar bolts, the RAM-B-367U motorcycle handlebar base will replace the existing bolt with a 1" B size ball. This rubber ball base provides shock and vibration damping, and is compatible with a wide variety of B size RAM^® double socket arms and device holders. The RAM-B-367U motorcycle handlebar base will work with any motorcycle that features an 8mm bolt or smaller on its structure. A smaller bolt can be used, though the load capacity decreases with the bolt size.

Product Information

Overview

For M8 handlebar bolts, the RAM-B-367U motorcycle handlebar base will replace the existing bolt with a 1" B size ball. This rubber ball base provides shock and vibration damping, and is compatible with a wide variety of B size RAM^® double socket arms and device holders. The RAM-B-367U motorcycle handlebar base will work with any motorcycle that features an 8mm bolt or smaller on its structure. A smaller bolt can be used, though the load capacity decreases with the bolt size.

Specifications
hardware included	(1) M8 x 55mm Socket Head Cap Screw (1) M8 x 60mm Socket Head Cap Screw (1) M8 x 65mm Socket Head Cap Screw
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.23 lb
Additional Information	To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when attaching the mount.

RAM<sup>®</sup> Motorcycle Handlebar Clamp Base with M8 Bolts

Questions about our products? Email us for support.

RAM^® Motorcycle Handlebar Clamp Base with M8 Bolts

Part#: RAM-B-367U

UPC: 793442924903

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$13.49

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Includes rubber ball, M8 x 55 bolt, M8 x 60 bolt, M8 x 65 bolt (1.25 thread pitch)
Compatible with any motorcycle M8 threaded bolt; ball base allows for connection to any B size RAM^® double socket arm
Made of marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

(1) M8 x 55mm Socket Head Cap Screw
(1) M8 x 60mm Socket Head Cap Screw
(1) M8 x 65mm Socket Head Cap Screw

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.23 lb

Additional Information:

To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when attaching the mount.

Print

Documents

On Road Catalog

Questions & Answers

Have a Question?

Ask a Question

Is this available with different hex bolts?

No, the M8 hex bolts are the only hardware we supply for the handlebar clamp base.
will this fit to 2022 BMW K1600 Grand America?

To determine if these bolts are compatible with yourmotorcycle measure the bolt for the diameter and add 30mm to the length. If itmatches one of the 55, 60, or 65 mm length, then you can use the appropriatebolt supplied with the mount. If it does not match, you may be able to sourcethe correct length of bolt locally or from your BMW dealer. Be sure to use thecorrect torque spec when attaching the mount.
Regarding your info on Additional Information,"To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length"What do you mean by measure the bolt for the diameter?

You can determine the diameter of a bolt by measuring from the outer thread on one side to the outer thread on the opposite side.
