RAM^® Ball Adapter with 3/8"-16 Threaded Post & Lock Washer - B Size
Part #: RAM-B-236U UPC: 793442113017 Features Ball adapter features 3/8"-16 threaded post and stainless steel split lock washer Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum and stainless steel for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Ball Adapter with 3/8"-16 Threaded Post & Lock Washer - B Size

Part #: RAM-B-236U UPC: 793442113017

Features

Ball adapter features 3/8"-16 threaded post and stainless steel split lock washer

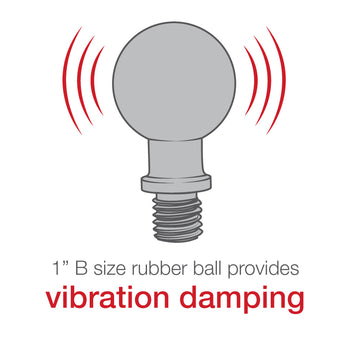

Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum and stainless steel for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Product Information

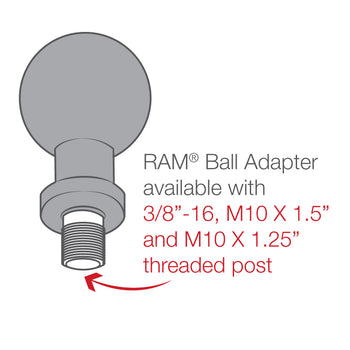

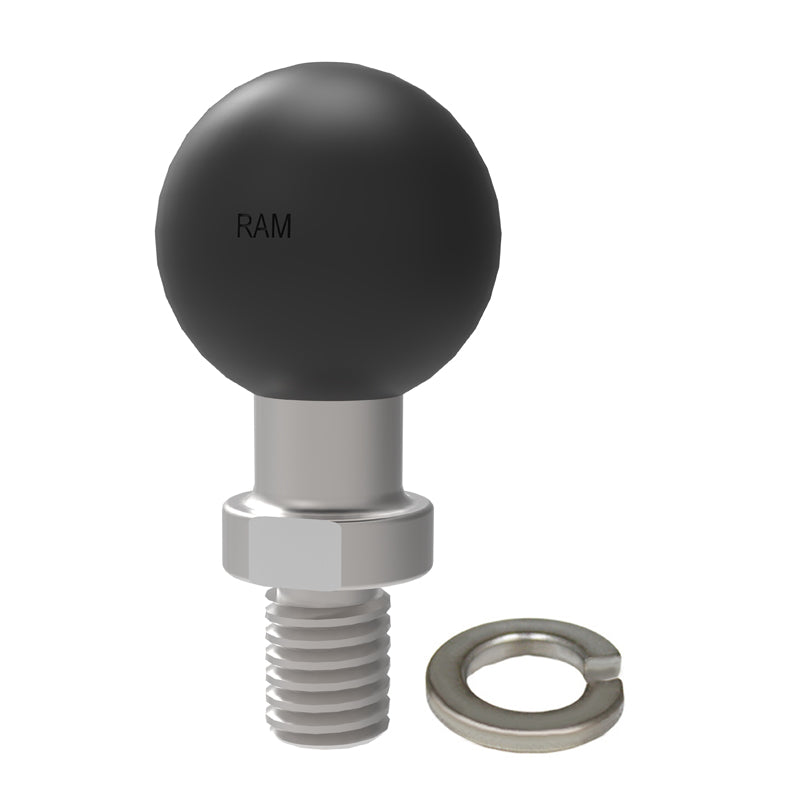

Overview	The RAM-B-236U consists of a 1" rubber ball connected to a 3/8"-16 threaded post. Thread length is .5". The RAM-B-236U will attach to all 1" diameter ball compatible arms.

Specifications
hardware included	(1) 3/8" Stainless Steel Split Lock Washer
thread pitch	3/8"-16 x .5"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.08 lb

RAM<sup>®</sup> Ball Adapter with 3/8"-16 Threaded Post & Lock Washer - B Size

Questions about our products? Email us for support.

RAM^® Ball Adapter with 3/8"-16 Threaded Post & Lock Washer - B Size

Part#: RAM-B-236U

UPC: 793442113017

B Size

Size Guide

Ball Size
Arm Sizes

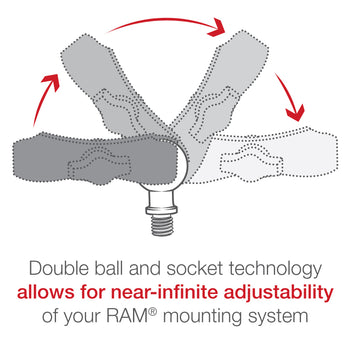

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$11.99

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAM-B-236U consists of a 1" rubber ball connected to a 3/8"-16 threaded post. Thread length is .5". The RAM-B-236U will attach to all 1" diameter ball compatible arms.

Features

Ball adapter features 3/8"-16 threaded post and stainless steel split lock washer
Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum and stainless steel for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

(1) 3/8" Stainless Steel Split Lock Washer

thread pitch:

3/8"-16 x .5"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.08 lb

Print

Questions & Answers

Have a Question?

Ask a Question

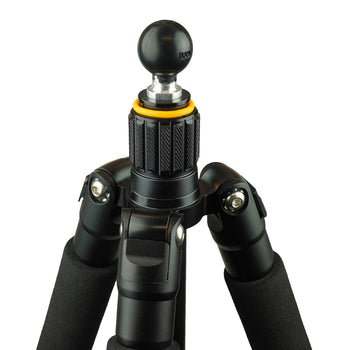

Would this thread into the tri pod screw on the dji osmo 6? Hoping to be able to use this with the RAM® Flex-Rod™ 26" Extension Arm for Wheelchairs and mount the gimbal to it so someone with cerebral palsy and is visually impaired can use the controls on the gimbal to move the phone around and see with the camera zoomed in at sports events and other functions.

Yes, that will work on the DJI Osmo 6 as long as the thread pitch in that screwhole on the Osmo 6 is 3/8"-16.
