RAM^® Ball Adapter with M10-1.25 Threaded Post
Part #: RAM-B-349U UPC: 793442911040 Features Universal threaded hole solution for a variety of use cases Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments Backed by a lifetime warranty

RAM^® Ball Adapter with M10-1.25 Threaded Post

Part #: RAM-B-349U UPC: 793442911040

Features

Universal threaded hole solution for a variety of use cases

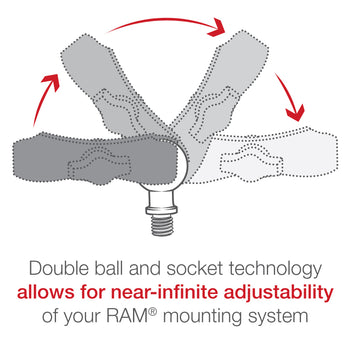

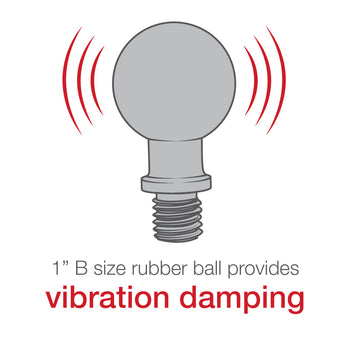

Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty

RAM<sup>®</sup> Ball Adapter with M10-1.25 Threaded Post

Product Information

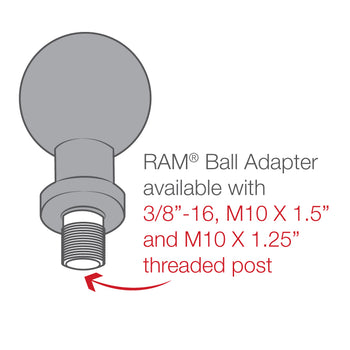

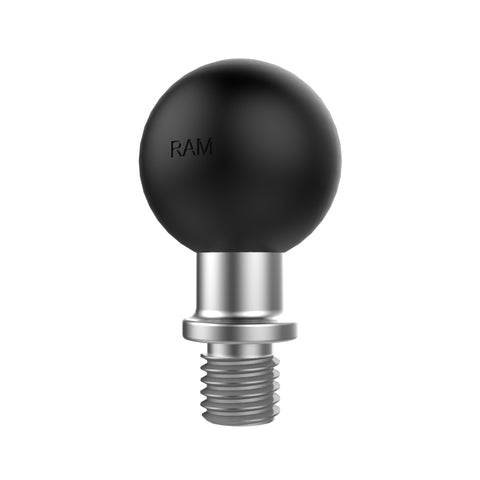

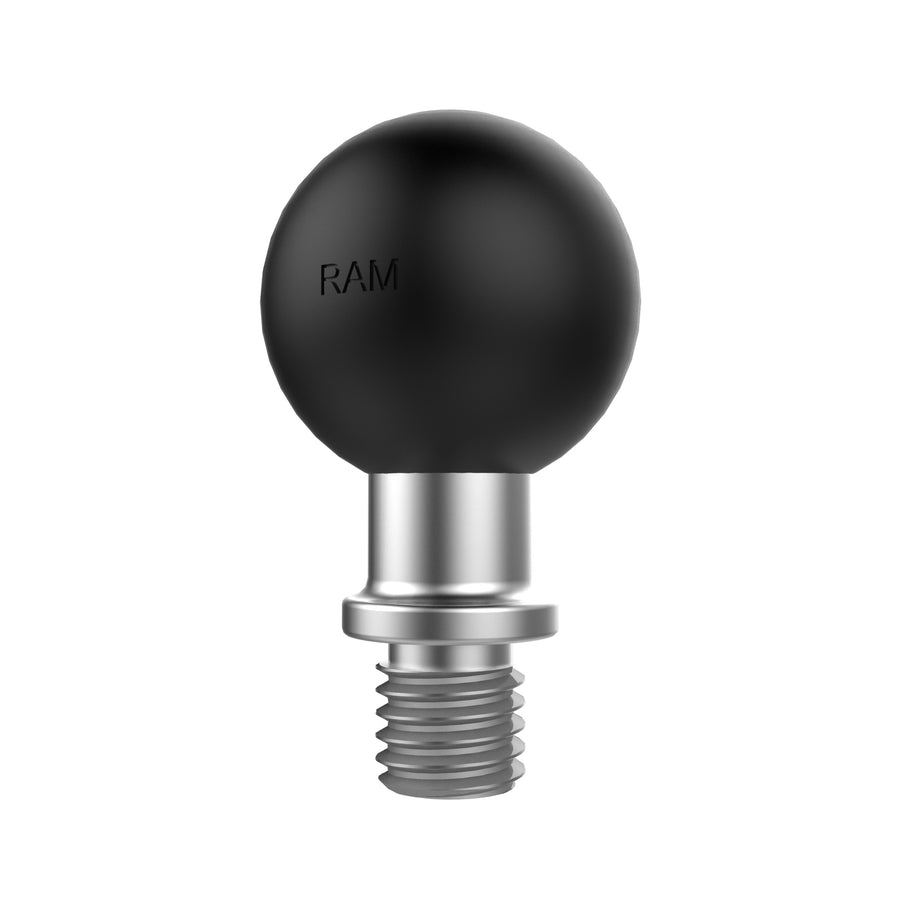

Overview	The RAM-B-349U includes a M10 x 1.25 pitch male thread connected to a 1" rubber ball. The threaded hole must contain the following dimensions for this base to fit: M10 1.25 pitch with a 14.5mm flange diameter with a 10.15mm thread length.

Specifications
thread pitch	M10-1.25 x 7/16"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.07 lb

RAM<sup>®</sup> Ball Adapter with M10 X 1.25 Threaded Post

Questions about our products? Email us for support.

RAM^® Ball Adapter with M10-1.25 Threaded Post

Part#: RAM-B-349U

UPC: 793442911040

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$13.99

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAM-B-349U includes a M10 x 1.25 pitch male thread connected to a 1" rubber ball. The threaded hole must contain the following dimensions for this base to fit: M10 1.25 pitch with a 14.5mm flange diameter with a 10.15mm thread length.

Features

Universal threaded hole solution for a variety of use cases
Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty

thread pitch:

M10-1.25 x 7/16"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.07 lb

Print

Questions & Answers

Have a Question?

Ask a Question

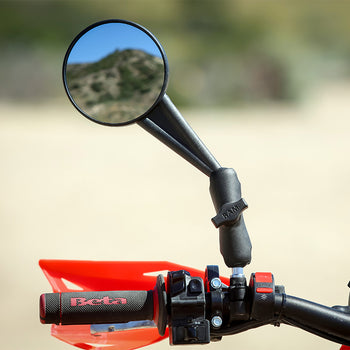

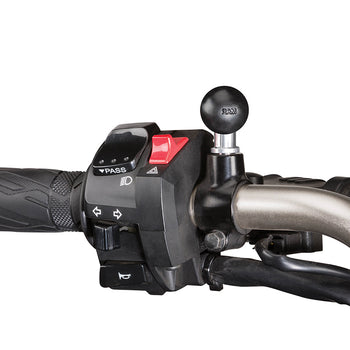

Do u have a model that will fit the mirror mount on a 2021 Yamaha tenere 700

You can look at the following that is compatible with your 2021 Yamaha Tenere 700:
RAM® Tough-Mirror™ Kit with M10-1.25 Bases + Reverse Adapter - Long Ar – RAM Mounts
Hello. The all Adapter with M10-1.25 Threaded Post Part#: RAM-B-349U UPC: 793442911040, feet on the KTM 890?

As long as the KTM 890 has a threaded screw hole that is M10 x 1.25 pitch then it will fit that bike.
2018 KTM 1090R OEM mirror post - replacing worn out Adaptor Ball and I thought I RAM sold an "extender" that gave a little more height on the adaptor ball but I cannot find this on the site.

Please see the following RAM® M10-1.25 Reverse Thread Adapter & RAM® M10-1.25 Thread Extension - 20mm Long
Do you have a model that will fit the mirror mount on a 2015 BMW F800gs?

Our RAM-B-349-1U has a longer stud and the compatible thread pitch for BMW mirror posts, including a 2015 BMW F800gs. Please note that we do not currently offer a reverse thread option but there are adapters from 3rd parties which are compatible with our parts that will help you achieve that.
