RAM® Double Ball Adapter with Round Base - B Size
Overview

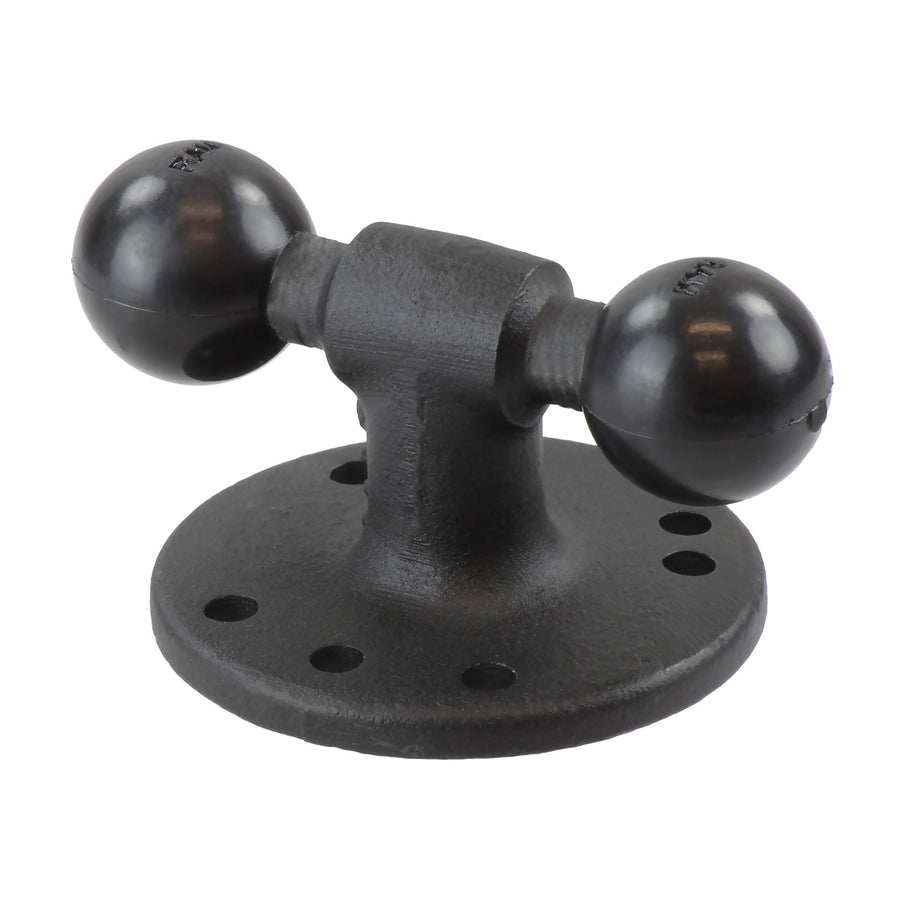

The RAM-B-217U consists of two 1" diameter rubber balls connected to a post and 2.5" diameter round base. The round base has pre-drilled holes, including the universal AMPs hole pattern and 3-hole 120 degree pattern. The 1" balls measure center to center 2.5" apart.
Features
- 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
- Two B size 1" RAM® rubber balls allow for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size:
2.5" Diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
0.25 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
What size screws are needed for the holes on this ball plate?
The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
