RAM® Torque™ Medium Rail Base - B Size

rammount.com
1-800-497-7479
sales@rammount.com

RAM^® Torque^™ Medium Rail Base - B Size
Part #: RAM-B-408-75-1U UPC: 793442950155 Features Handlebar mounting base with B size 1" rubber ball accommodates rails 3/4" to 1" in diameter Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Torque^™ Medium Rail Base - B Size

Part #: RAM-B-408-75-1U UPC: 793442950155

Features

Handlebar mounting base with B size 1" rubber ball accommodates rails 3/4" to 1" in diameter
Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Torque<sup>™</sup> Medium Rail Base - B Size

Product Information

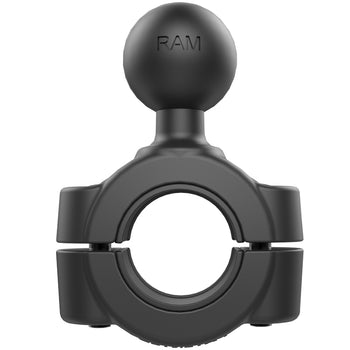

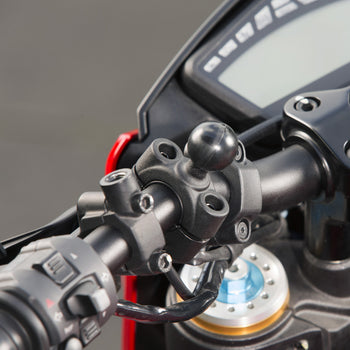

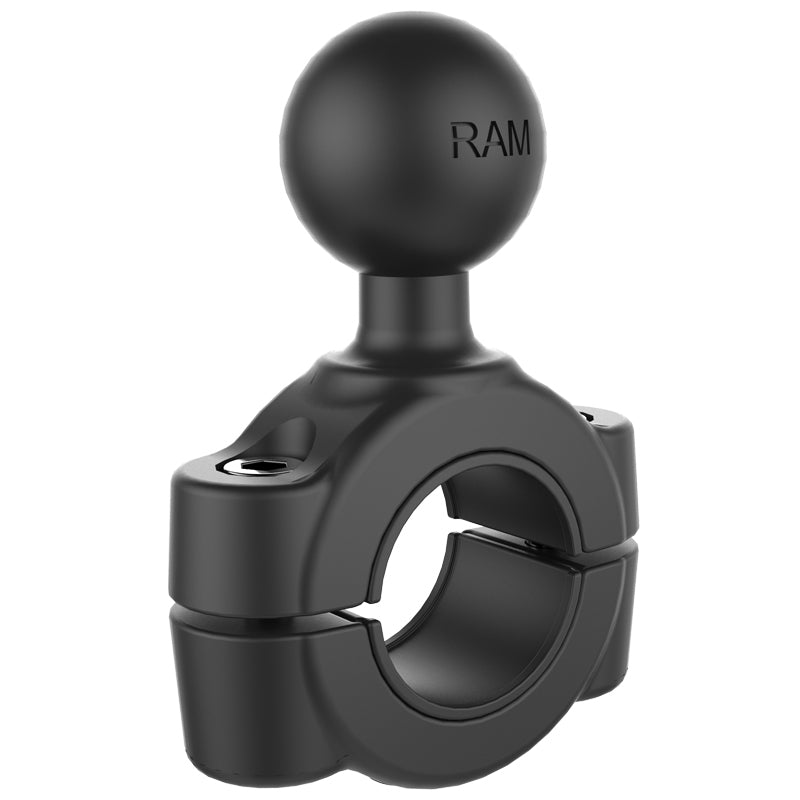

Overview	The RAM^® Torque^™ handlebar mounting base features a 1" B size RAM^® rubber ball and is compatible with rails 3/4” to 1” in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The RAM^® Torque^™ mounting base also includes nylon-insert lock nuts to prevent loosening in high vibration environments.

Specifications
hardware included	(2) #10-24 x 1" Socket Head Cap Screws (2) #10-24 Nylock Nuts (2) .75" Composite Bushings (2) .9" Composite Bushings (1) 88.9mm Rubber Strip (1) 5/32" Hex Key Wrench
clamp range	.75" - 1" diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.26 lb

Questions about our products? Email us for support.

RAM^® Torque^™ Medium Rail Base - B Size

Part#: RAM-B-408-75-1U

UPC: 793442950155

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$27.99

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAM^® Torque^™ handlebar mounting base features a 1" B size RAM^® rubber ball and is compatible with rails 3/4” to 1” in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The RAM^® Torque^™ mounting base also includes nylon-insert lock nuts to prevent loosening in high vibration environments.

Features

Handlebar mounting base with B size 1" rubber ball accommodates rails 3/4" to 1" in diameter
Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

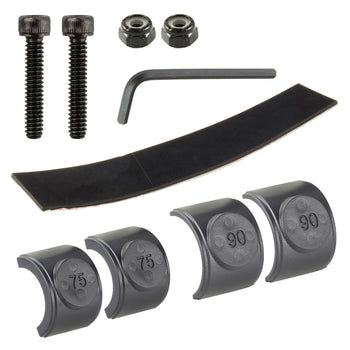

hardware included:

(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) .75" Composite Bushings
(2) .9" Composite Bushings
(1) 88.9mm Rubber Strip
(1) 5/32" Hex Key Wrench
