RAM® Tough-Ball™ with Coupling Nut for WeBoost Antennas
Part #: RAP-379U-372437-CN UPC: 793442935176 Features weBoost adapter features a RAM® Tough-Ball™ with a 3/8"-24 x .375" male threaded post with a coupling nut and two lock washers Included C size 1.5" RAM® rubber balls allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability Made of high-strength composites with stainless steel thread post for durability and reliability in the most demanding environments Backed by a lifetime warranty

Part #: RAP-379U-372437-CN UPC: 793442935176

Features

weBoost adapter features a RAM® Tough-Ball™ with a 3/8"-24 x .375" male threaded post with a coupling nut and two lock washers
Included C size 1.5" RAM® rubber balls allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of high-strength composites with stainless steel thread post for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® Tough-Ball™ with Coupling Nut for WeBoost Antennas

Product Information

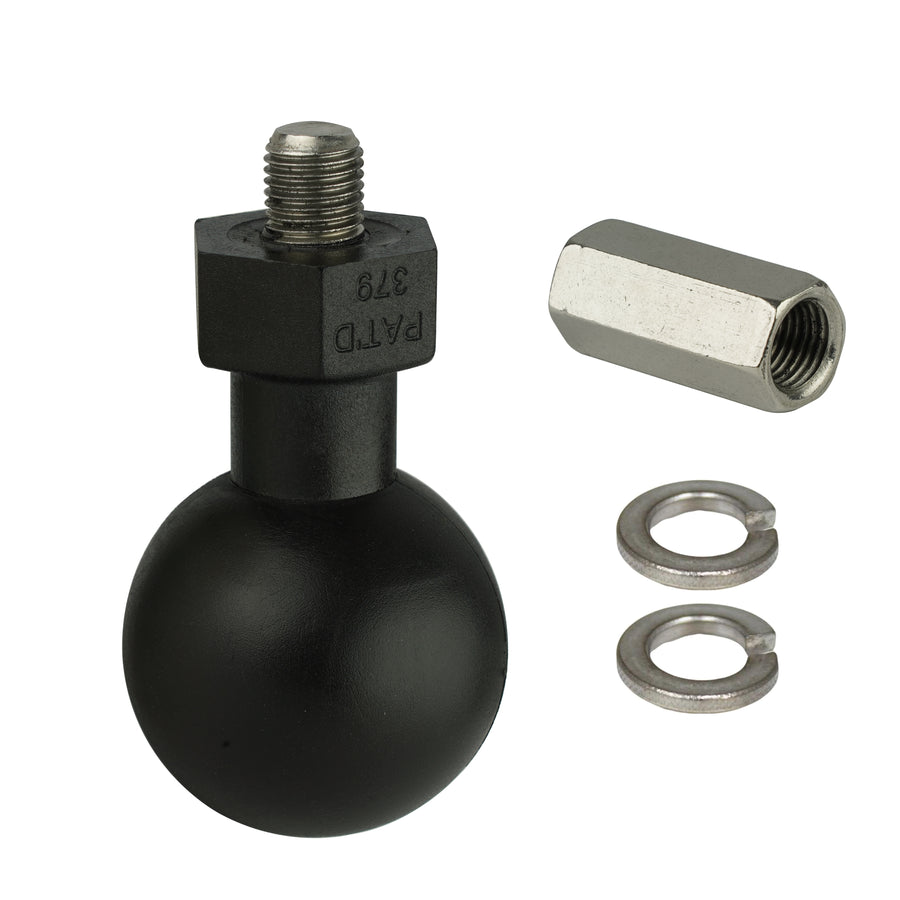

Overview	This weBoost Kit Ball adapter consists of a C size 1.5" diameter RAM® Tough-Ball™ ball connected to a 3/8"-24 x .375" male threaded post with a coupling nut and two lock washers. The ball is compatible with all RAM® C Size ball & socket components, allowing you to secure your weBoost antenna in virtually any location.

Specifications
hardware included	(1) Coupling Nut (2) Lock Washers
thread pitch	3/8"-24 x .375"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	High strength composite Stainless steel threads
packaging type	Poly Bag
Weight	0.22 lb

Questions about our products? Email us for support.

RAM® Tough-Ball™ with Coupling Nut for WeBoost Antennas

Part#: RAP-379U-372437-CN

UPC: 793442935176

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$24.99

C Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

This weBoost Kit Ball adapter consists of a C size 1.5" diameter RAM® Tough-Ball™ ball connected to a 3/8"-24 x .375" male threaded post with a coupling nut and two lock washers. The ball is compatible with all RAM® C Size ball & socket components, allowing you to secure your weBoost antenna in virtually any location.

Features

weBoost adapter features a RAM® Tough-Ball™ with a 3/8"-24 x .375" male threaded post with a coupling nut and two lock washers
Included C size 1.5" RAM® rubber balls allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of high-strength composites with stainless steel thread post for durability and reliability in the most demanding environments
Backed by a lifetime warranty
