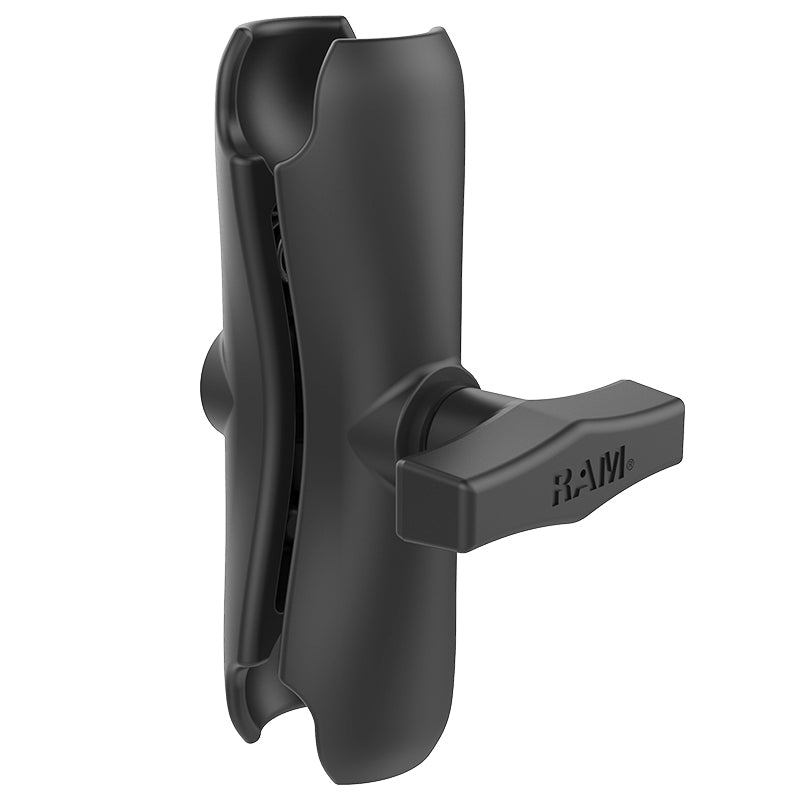

RAM^® Double Socket Arm - C Size Medium
Part #: RAM-201U UPC: 793442001215 Features Medium length double socket arm has an overall length of 5.69" and a socket-to-socket length of 4.66" Attaches to any C size RAM^® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM^® mounting system Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Double Socket Arm - C Size Medium

Part #: RAM-201U UPC: 793442001215

Features

Medium length double socket arm has an overall length of 5.69" and a socket-to-socket length of 4.66"
Attaches to any C size RAM^® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM^® mounting system
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Double Socket Arm - C Size Medium

Product Information
Overview	The RAM-201U consists of a medium length double socket arm that accommodates 1.5" C size ball bases, device holders, and adapters. A single spring inside the arm keeps the socket open, and allows you to insert the ball into the socket connection. This arm has an overall length of 5.69". The easy to adjust knob allows for near-infinite adjustability.

Specifications
product dimensions	Overall Length: 5.69"
socket to socket length	4.66"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.75 lb

Questions about our products? Email us for support.

RAM^® Double Socket Arm - C Size Medium

Part#: RAM-201U

UPC: 793442001215

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
