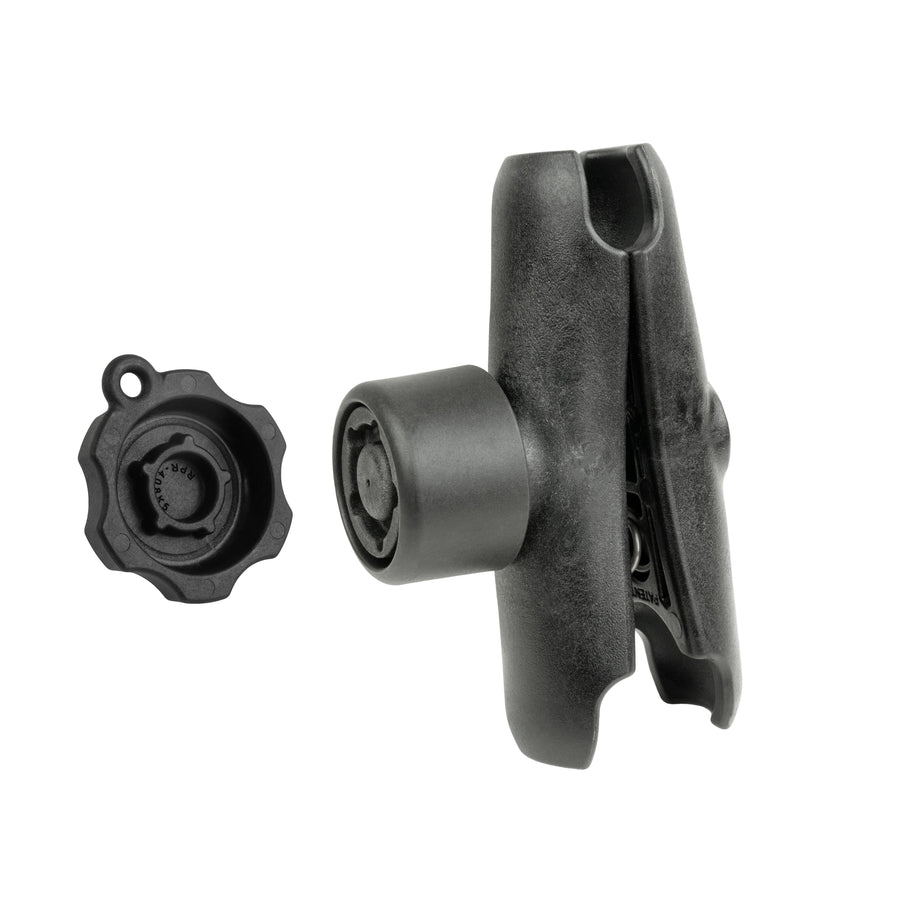

RAM^® Composite Double Socket Arm with 5-Pin RAM^® Pin-Lock^™ Security Knob
Part #: RAP-201-S-KEY5U UPC: 793442906893 Features Standard RAM^® double socket arm provides an ideal overall length of 5.5" and a socket-to-socket length of 4.66"; includes RAM^® Pin-Lock^™ security knob and key Attaches to any C size RAM^® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM^® mounting system Made of high-strength composites for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Composite Double Socket Arm with 5-Pin RAM^® Pin-Lock^™ Security Knob

Part #: RAP-201-S-KEY5U UPC: 793442906893

Features

Standard RAM^® double socket arm provides an ideal overall length of 5.5" and a socket-to-socket length of 4.66"; includes RAM^® Pin-Lock^™ security knob and key
Attaches to any C size RAM^® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM^® mounting system
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Composite Double Socket Arm with 5-Pin RAM<sup>®</sup> Pin-Lock<sup>™</sup> Security Knob

Product Information
Overview	The RAM^® Double Socket Arm with RAM^® Pin-Lock^™ Security Knob consists of a composite C size double socket arm and mixed combination Pin-Lock^™ security nut and key knob for theft deterrence. RAM^® Pin-Lock^™ security solutions are designed to withstand the harshest environments where RAM^® Mounts are commonly used. With an emphasis on aesthetics and function, RAM^® security nuts/knobs are low profile and only add a small amount of additional bulk to your system when compared to the standard knob included.

Product Information

Overview

The RAM^® Double Socket Arm with RAM^® Pin-Lock^™ Security Knob consists of a composite C size double socket arm and mixed combination Pin-Lock^™ security nut and key knob for theft deterrence. RAM^® Pin-Lock^™ security solutions are designed to withstand the harshest environments where RAM^® Mounts are commonly used. With an emphasis on aesthetics and function, RAM^® security nuts/knobs are low profile and only add a small amount of additional bulk to your system when compared to the standard knob included.

Specifications
hardware included	(1) RAM Pin-Lock Security Key
product dimensions	Overall Length: 5.5"
socket to socket length	4.66"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	High strength composite
packaging type	Poly Bag
Weight	0.67 lb

Questions about our products? Email us for support.

RAM^® Composite Double Socket Arm with 5-Pin RAM^® Pin-Lock^™ Security Knob

Part#: RAP-201-S-KEY5U

UPC: 793442906893

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$29.49

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
