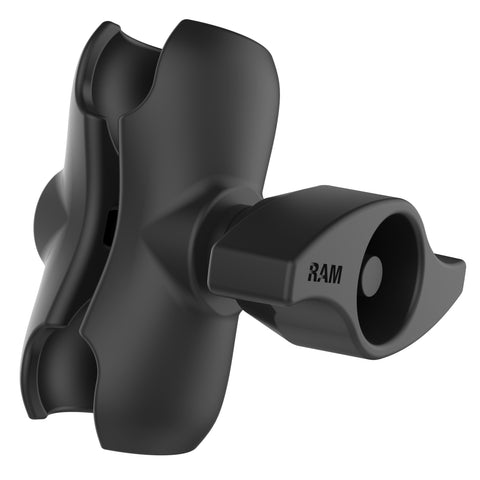

RAM^® Double Socket Arm with Metal Knob - C Size Short
Part #: RAM-201MU-B UPC: 793442954719 Features Standard RAM^® double socket short arm provides an ideal overall length of 3.56" and a socket-to-socket length of 2.5"; includes RAM^® metal knob Attaches to any C size RAM^® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM^® mounting system Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Double Socket Arm with Metal Knob - C Size Short

Part #: RAM-201MU-B UPC: 793442954719

Features

Standard RAM^® double socket short arm provides an ideal overall length of 3.56" and a socket-to-socket length of 2.5"; includes RAM^® metal knob
Attaches to any C size RAM^® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM^® mounting system
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Double Socket Arm with Metal Knob - C Size Short

Product Information
Overview	The RAM-201MU-B, short double socket arm with metal knob, has a socket at both ends that accommodates 1.5" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.

Specifications
product dimensions	Overall Length: 3.56"
socket to socket length	2.5"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.58 lb

Questions about our products? Email us for support.

RAM^® Double Socket Arm with Metal Knob - C Size Short

Part#: RAM-201MU-B

UPC: 793442954719

C Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$39.99

Options

C Size

Short Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAM-201MU-B, short double socket arm with metal knob, has a socket at both ends that accommodates 1.5" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.

Features

Standard RAM^® double socket short arm provides an ideal overall length of 3.56" and a socket-to-socket length of 2.5"; includes RAM^® metal knob
Attaches to any C size RAM^® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM^® mounting system
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty
