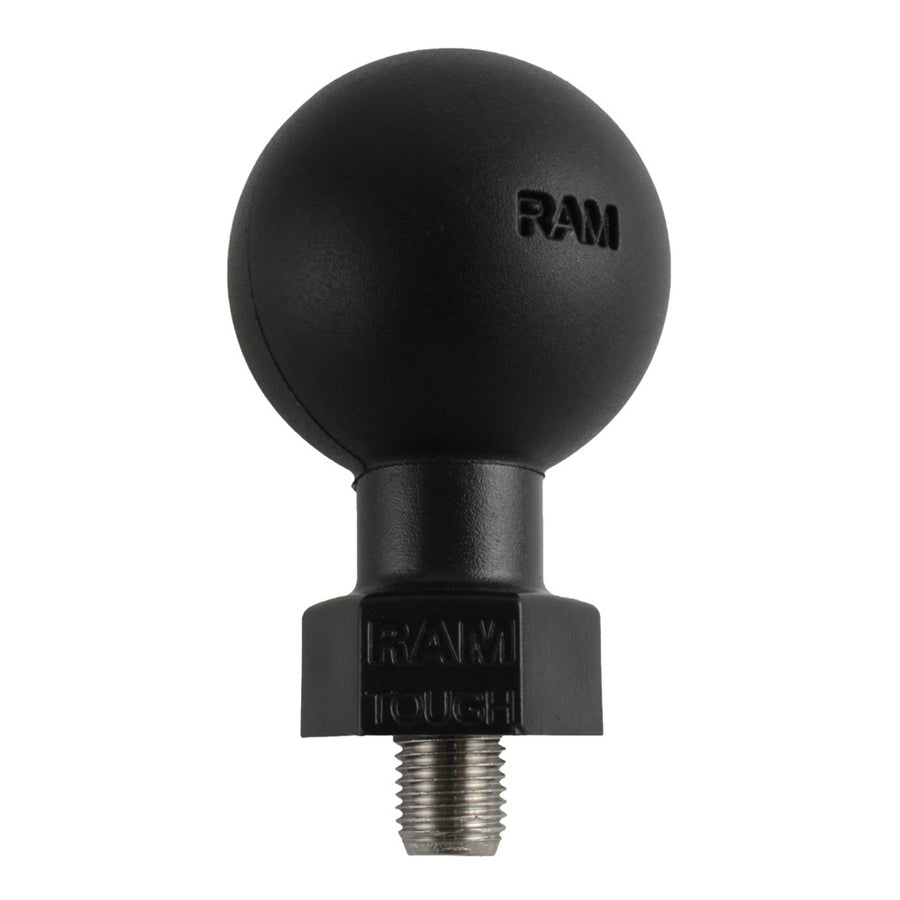

RAM® Tough-Ball™ with 3/8"-24 X .375" Threaded Stud - C Size

Part#: RAP-379U-372437
UPC: 793442936913
$15.99

Overview

Introducing the new RAM Tough-Ball™. Why call it tough? Because this latest addition to the RAM product line has steel inside and out. The seamless transition between RAM versatility and steel durability allows for a multitude of real world, and out of this world, applications. With so many of the things we use incorporating threads and fasteners, there really is no limit to the number of uses you'll find for the RAM Tough-Ball™. The RAP-379U-372437 consists of a 1.5" diameter rubber ball, connected to a 3/8"-24 X .375" male threaded post.

thread pitch:

3/8"-24 x .375"

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

High strength composite
Stainless steel

packaging type:

Poly Bag

Weight:

0.18 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
RAM® Tough-Ball™ with 3/8"-24 X .375" Threaded Stud - C Size
$15.99

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size 1" ball
  • C Size — this product 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C — this product1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
